Tommaslide Bottom Rolling System for Patio Doors – Max Weight Door: 300kg
Our Tommaslide Bottom Rolling Sliding Door System for Patio Doors remains one of the most popular sellers in our range.
Completely adjustable, smooth rolling and easy to install; it’s the perfect solution for any of your interior or exterior sliding door needs.
Select the Options below to Make Up your Kit:
- Bottom Rolling Straight Sliding System
- Suited to Interior or Exterior Applications
- Suitable for Timber Doors
- Track is joined by butting track together
- Any number of doors can be used on single or double track lines
- For Bypassing doors two kits can be purchased and track placed side by side
- Simple installation and completely adjustable
- Max Door Weight: 600kg
- Min Door Thickness: 30mm
- Up to 5mm Vertical Adjustment
- Max Door Height: 3m
- Up to 2 tracks can be placed side by side for bypassing doors

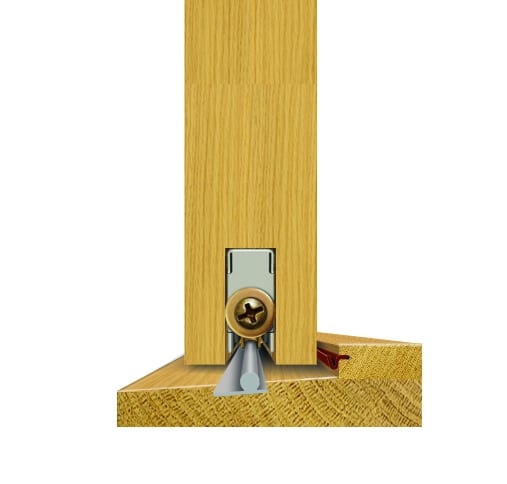

- 1 x Aluminium bottom track (Available in 2m, 3m, 4m and 6m Lengths)
- 1 x U-Shaped top guide track (Available in 2m, 3m, 4m and 6m Lengths)

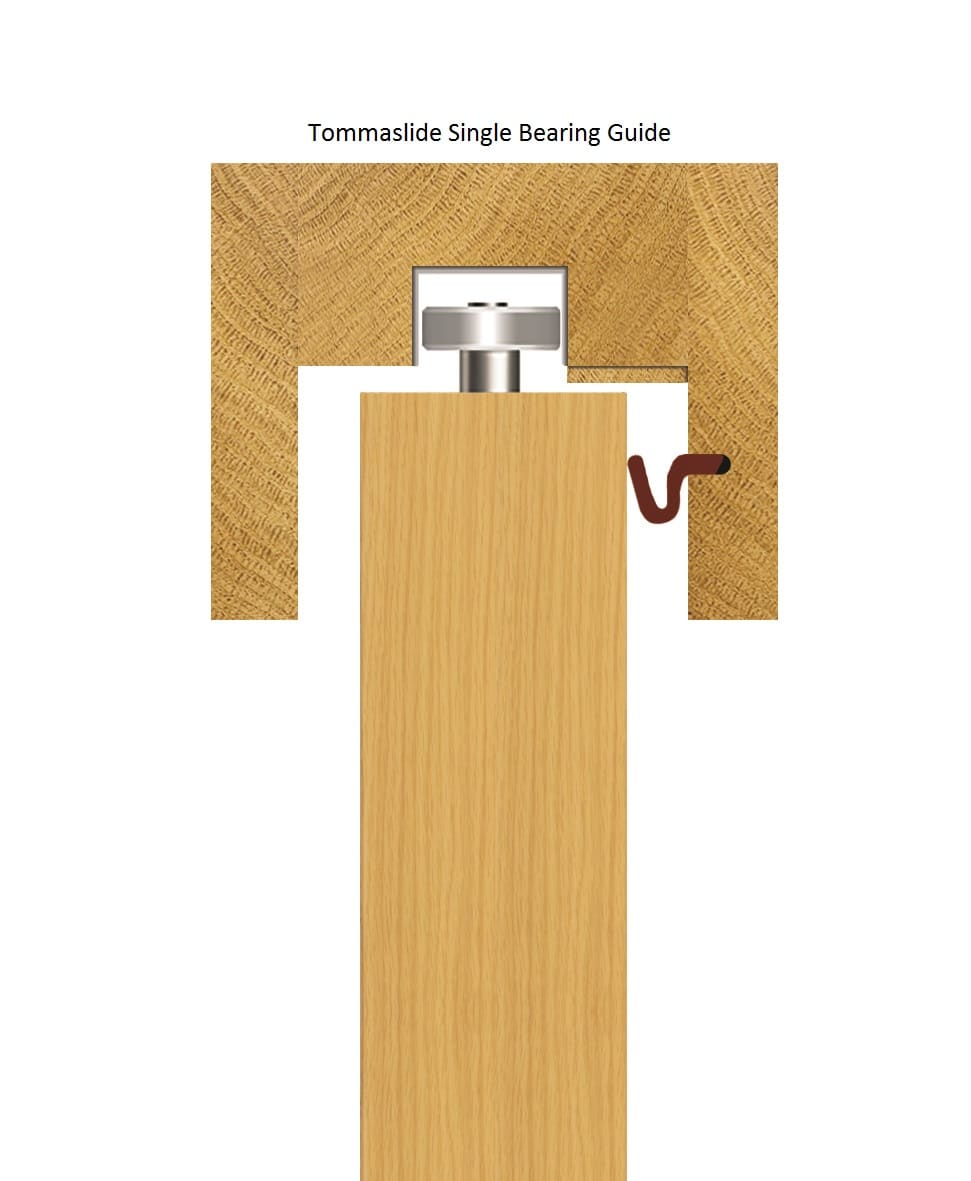

- 2 x Nylon Bearing Guide to fit in top guide track
- 2 x Roller Castors for doors to roll on
- 10m of Weather seal (either brown/white)
- 3m of Meeting Style Pile Carrier to place between fixed and moving panels
- Optional 6-Point Hook Look and Patio Door Handle
Kit does not Include Doors
