Ultra Bypass Double Track Sliding Wardrobe Door Kits
Ultra Bypass Double Track Sliding Wardrobe Door Kits
Looking for a sliding wardrobe door kit that can hold decent-sized doors and is built to last? The Ultra Bypass track kit is the right choice for you.
Perfect for two-door and three-door applications, this kit can be used across wardrobes of multiple sizes, making it an attractive choice for many sliding door projects. Available in a wide range of track lengths – ranging from 1.5 metres all the way to 6 metres – you’ll always have the track you need.

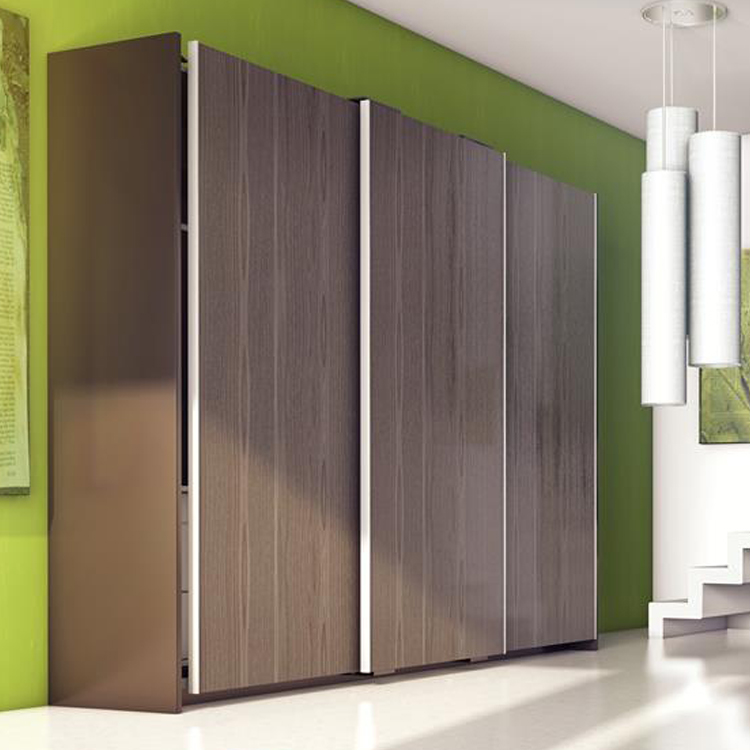

By eliminating traditional wardrobe doors that swing outward, sliding doors also act as a fantastic space-saving solution – ideal for tight spaces or minimalist design tastes.
Built with longevity in mind, users will enjoy years of reliable and smooth sliding every time, with sliding door tracks that can uphold doors of an impressive 100kg in weight.
Whether the sliding doors are to be used on traditional wardrobes, display cabinets or a host of other applications, these sliding door tracks will serve you well during installation and beyond.
Plus, with a soft-closing mechanism, these tracks help prevent damage caused to doors by harsh closings. This also helps reduce excessive noise which can disturb others in the house or those nearby.
- Top hung sliding door tracks in these kits yields a bypass doors functionality.
- Integrated soft open and close system.
- Suited to interior door applications
- Track is surface fixed to top of wardrobe.
- Rollers are surface fixed to face of door
- Suitable for timber doors.
- Track can be joined by butting track runners together
- Any number of doors can be used on each track
- Smooth rolling, adjustable top hung sliding door hardware.
- Uses retractable click-in bottom guides for easy installation or removal of doors
- Suitable for overlay wardrobe doors

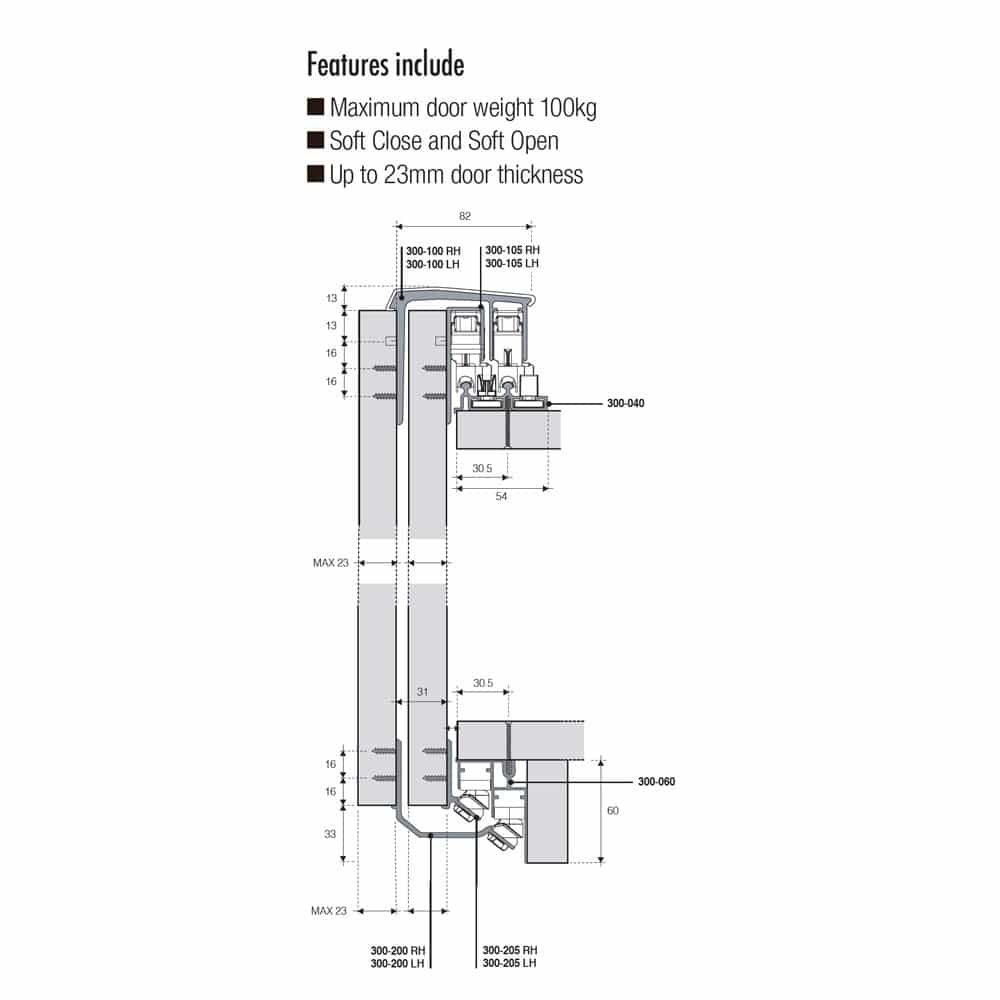

- Maximum Door Weight Per Track: 100kg
- Door Thickness: 18mm – 23mm
- Up to 5mm Vertical Adjustment

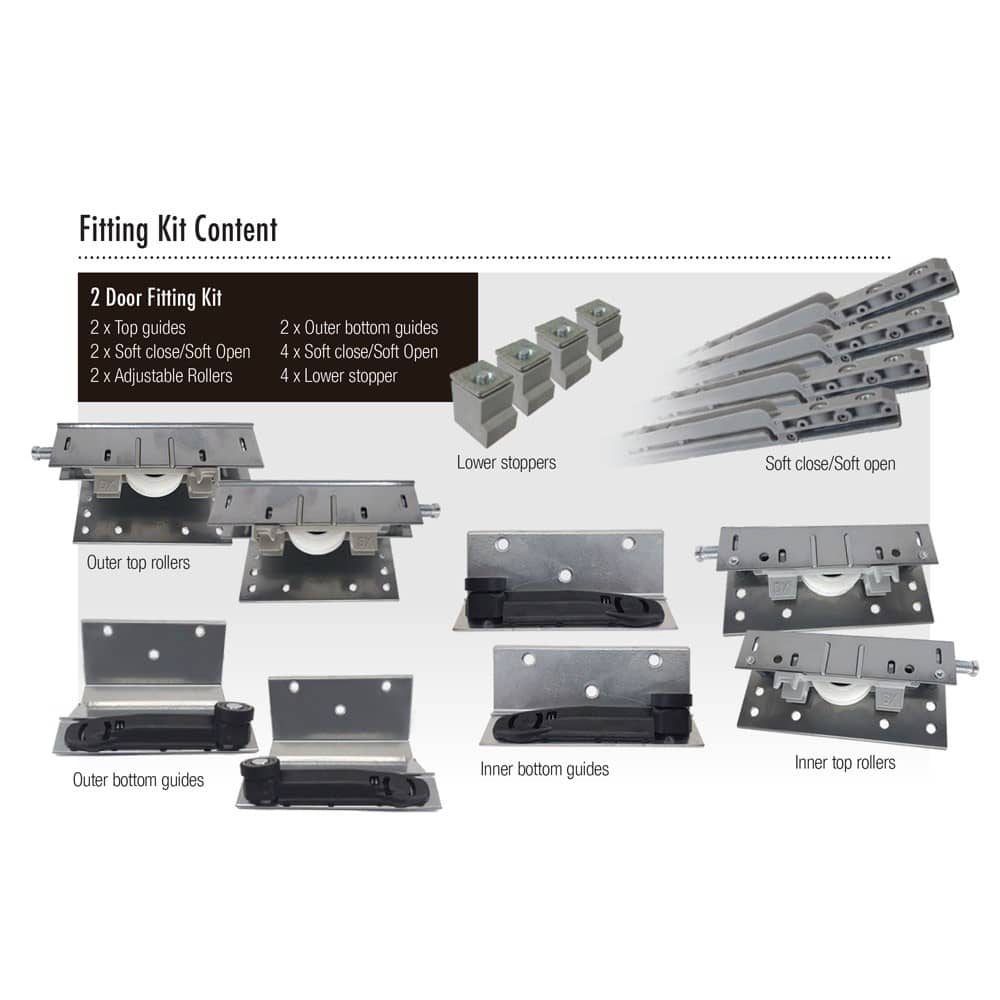

Double Sliding Wardrobe Door Fittings

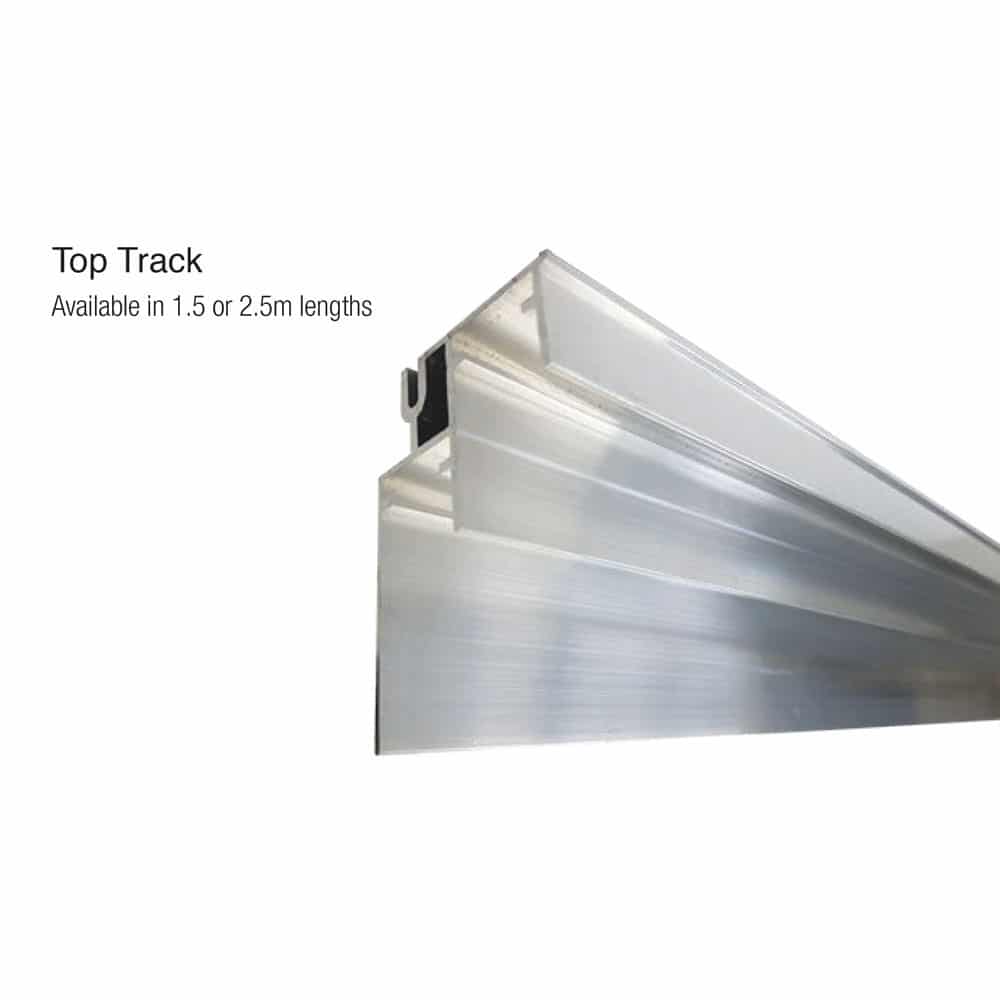

- Aluminium top track – available in 1.5m and 2.5m lengths

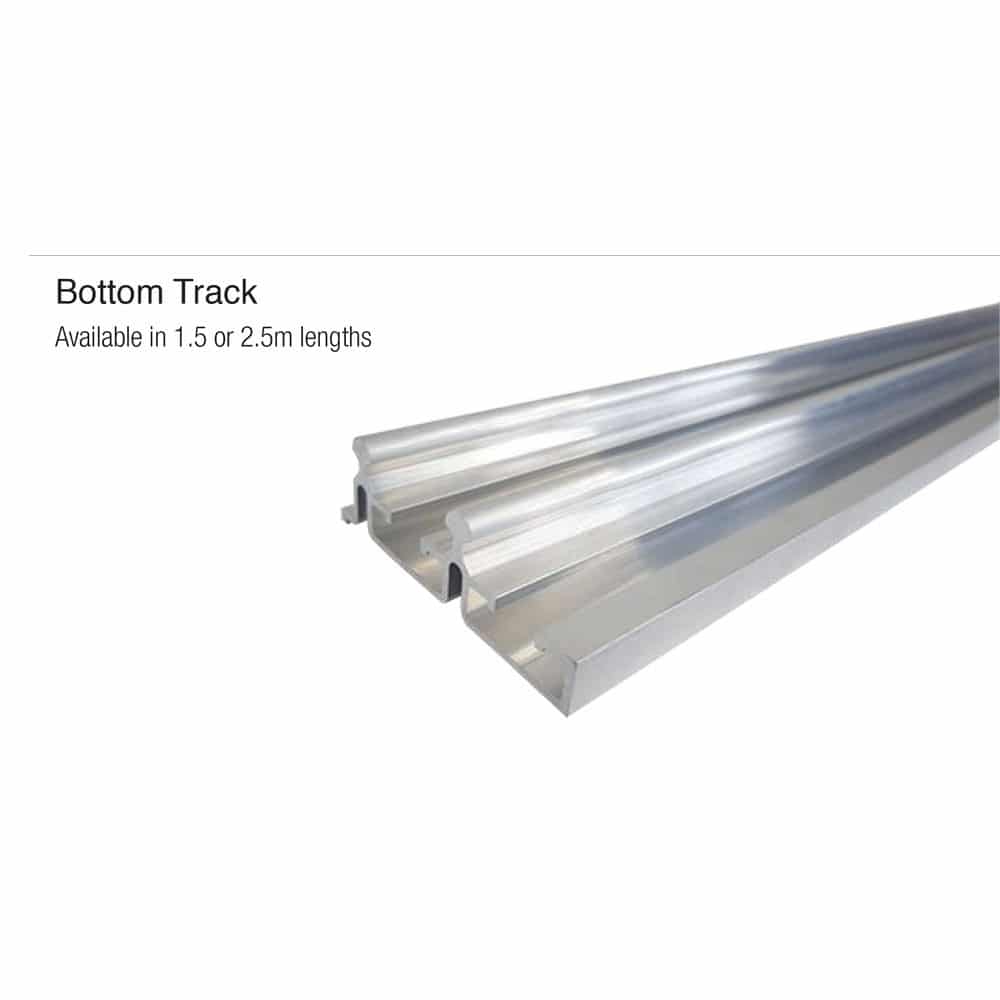

- Aluminium bottom profile – available in 1.5m and 2.5m lengths
- 2 x inner adjustable top rollers
- 2 x outer adjustable top rollers
- 2 x inner retractable bottom guide rollers
- 2 x outer retractable bottom guide rollers
- 4 x soft close/open units
- 4 x bottom track mounted stoppers
3 Door Sliding Track System
- Aluminium top track – available in 1.5m and 2.5m lengths
- Aluminium bottom profile – available in 1.5m and 2.5m lengths
- 4 x inner adjustable top rollers
- 2 x outer adjustable top rollers
- 4 x inner retractable bottom guide rollers
- 2 x outer retractable bottom guide rollers
- 6 x soft close/open units
- 6 x bottom track mounted stoppers
For more information, check out Issue 2 of our
On-Furniture and Interior Sliding System catalogue.
Related products
-
Flush Pull Handle Satin Stainless Steel 155 X 37mm
£7.53 ex VAT -
Flush Pull Radius End 120 x 40mm
From:£7.40 ex VAT
Frequently Asked Questions
Can these sliding door tracks be used with any sliding door?
While this sliding door track kit can be used with a wide range of sliding doors, it will not work with every sliding door. Before you make a purchase, be sure to triple-check the specifications of both this product and the sliding doors you’ll be working with to ensure they’re a good match. Be sure to check the weight of your doors, their measurements and any other variables. If you’re unsure and need a helping hand, speak to the Runners team today.
What are these sliding door tracks made of?
The tracks featured with this sliding door track kit are made of high-quality aluminium. Not only is aluminium very durable, but it can also withstand elemental factors far better than similar metals, meaning it will not degrade over time - ideal for sliding doors that will be used multiple times a day, every day. On top of this, aluminium is known to be very long-lasting, offering a sliding door experience that’s sure to last for years.
Are these sliding door tracks easy to install?
Our sliding door track kits are designed to be as easy to install as possible - so even if you have no experience installing sliding doors at all, you shouldn’t experience any issues as long as you’re able to follow the basics. But should you run into any trouble, the Runners team is only an email or phone call away, so don’t be afraid to reach out for advice to help you complete your project.
