Tommafold 60 – Top Hung Exterior Bi-Folding Door System – Max Panel Weight: 75kg
Our Tommafold 60 top hung bifold door hardware comes as a kit and is a popular bi fold door track system, having a capacity of up to 75kg door weight. Completely adjustable, smooth rolling and easy to install; it’s the perfect external bifold door ironmongery solution for any of your folding door needs.
- Top hung external bifold door ironmongery
- Bi fold door track system for interior or exterior applications
- 10 year warranty
- Smooth rolling polymer tyres tested to 100,000 cycles
- Robust hinges tested to 200,000 cycles
- Top hung bi fold door track is soffit fixed to underside of jamb
- Roller connected to door via heavy duty flush hinge
- Suitable for timber or metal doors
- Track can be joined by butting track together
- Any number of doors can be fitted to the system
- Compact top track (38mm x 39mm)
- Ergonomic hinge handle design for optimal functionality
- Ideal for room dividers in homes, offices and hotels
- Max door weight: 75kg
- Max door height: 3000mm
- Max door width: 1000mm
- Min door thickness: 38mm

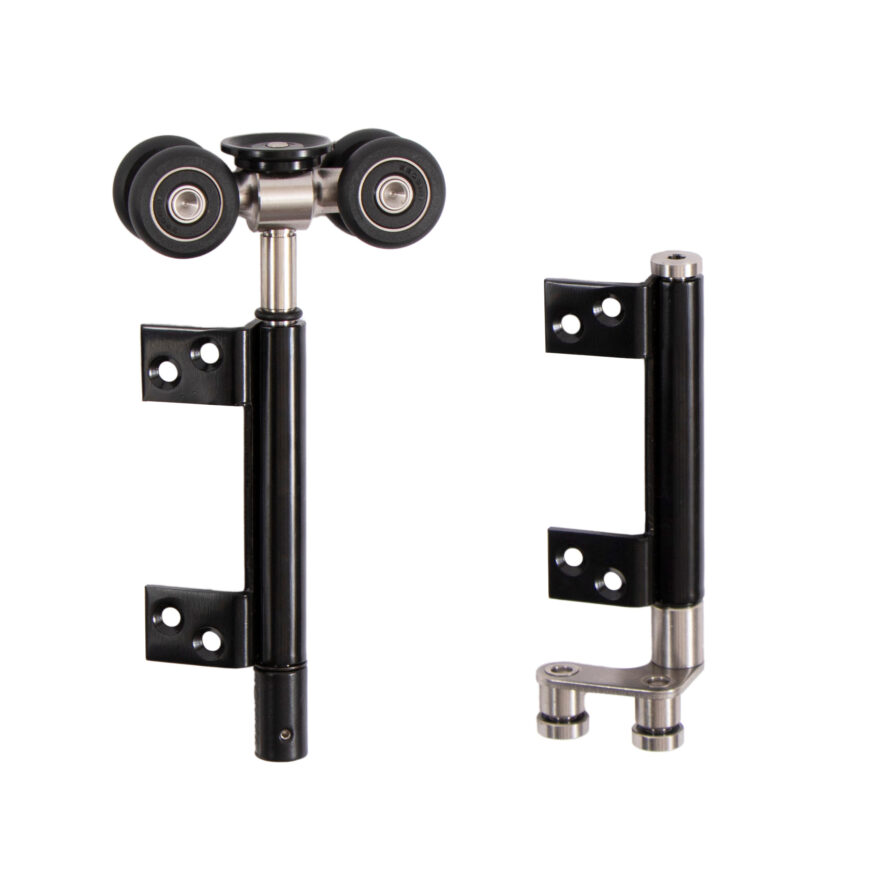

- 1 x end carrier set including top roller hinge and bottom hinge roller for even number of doors
- Aluminium top hung bi fold door track (Available in 2m, 3m, 4m and 6m lengths)
- Aluminium bottom channel (Available 2m, 3m, 4m and 6m lengths)

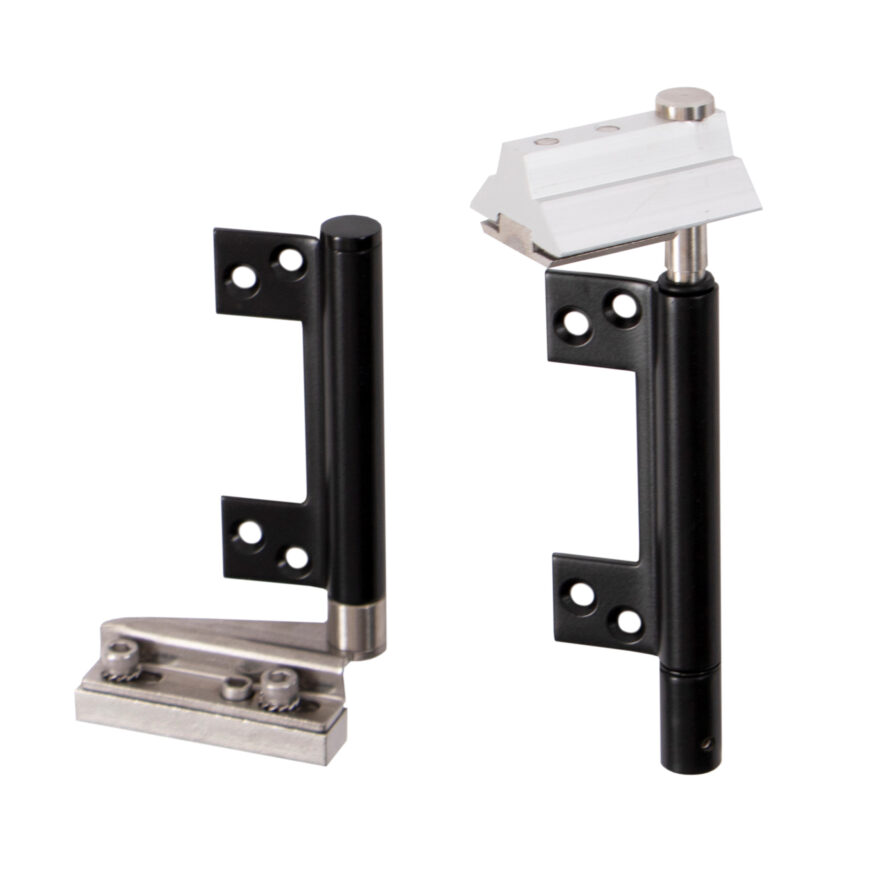

- 1 x Top and bottom hinge pivot for fixed starter panel
- 1 x Intermediate carrier set including top roller hinge and bottom hinge roller
- 3 x flush hinge and screws per join between doors
- 1 x extra hinge for door heights over 2.15m, 2 x extra hinges for doors heights over 2.55mm
- 1 x hinge handle per join every 2nd door
- 1 x locking flush bolt and 1 x non-locking flush bolt on every other join in doors
Kit does not Include Doors
