Door Straightener Kit – 2240mm

Code: 135538

An essential fitting for large door panels to prevent bending and warping.

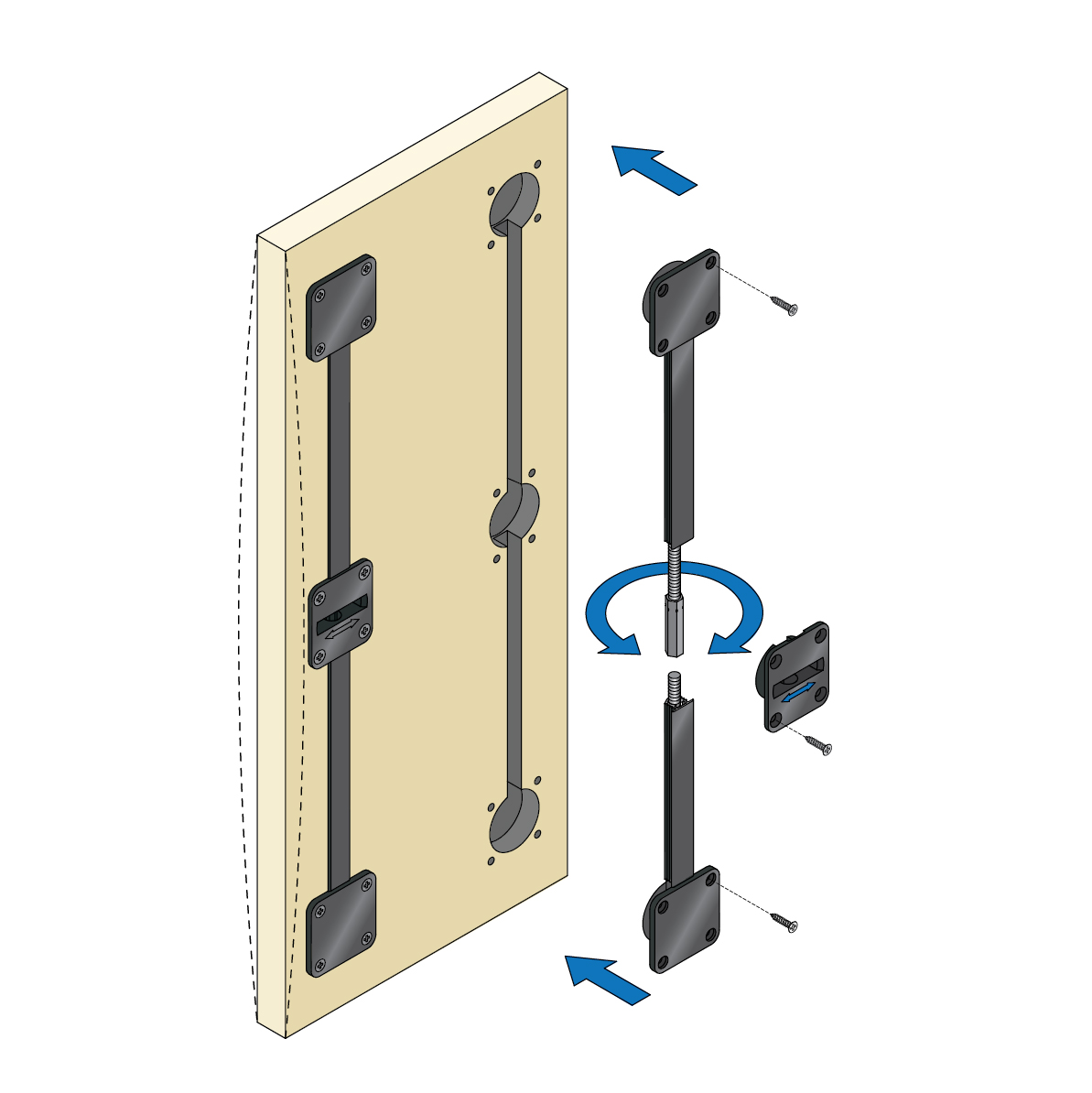

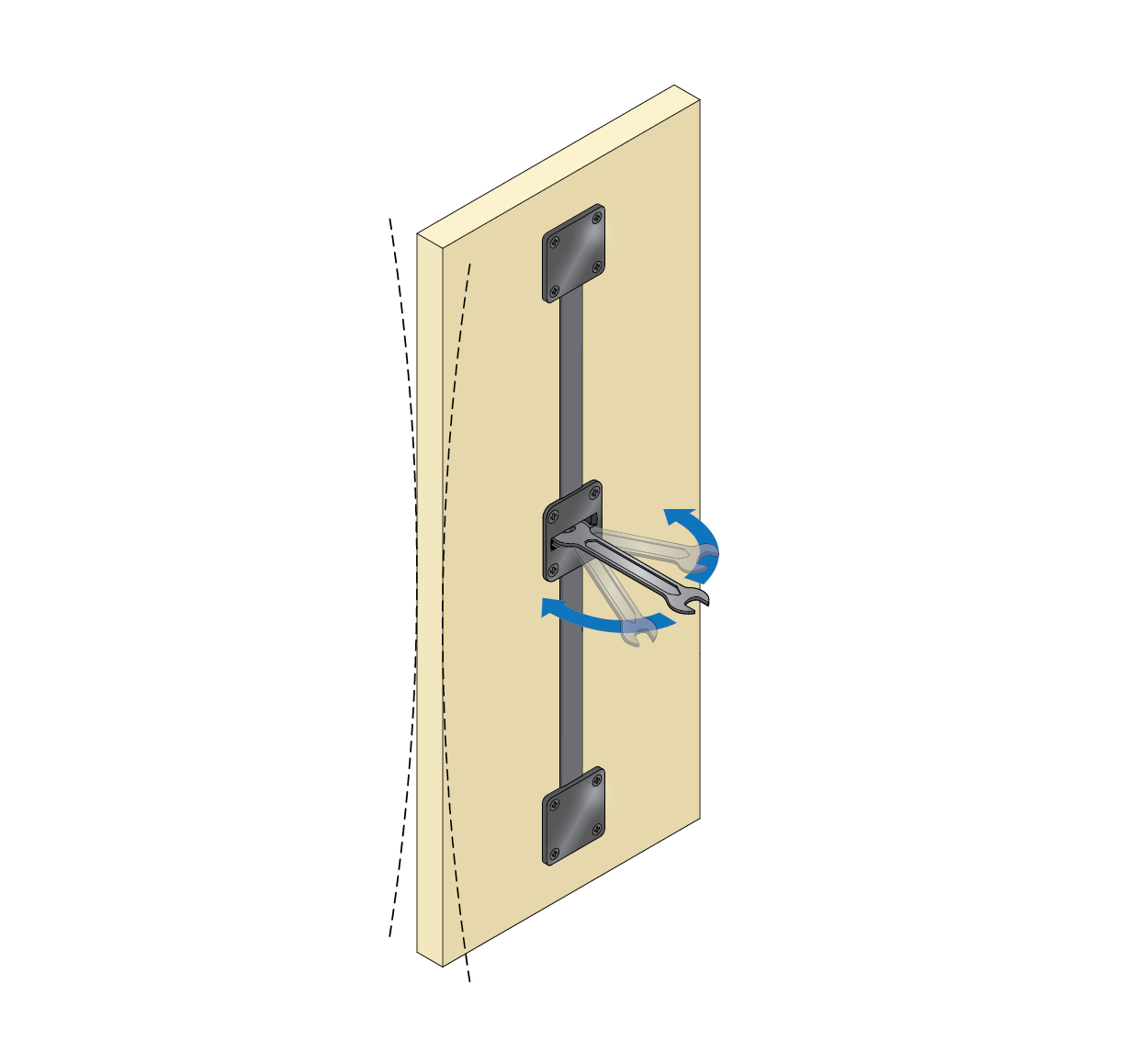

The door straightener is easily fitted and adjusted centrally with a spanner. 3x standard 35mm hinge holes linked with 10mm grooves is the only machining required. The threaded bars are concealed with push fit black plastic covers.

We recommend you use just one straightening bar for doors up to a maximum width of 750mm for wider doors use 2 straightening bars per door.

  • Maximum width

    750mm

  • Linked hinge holes

    3 x Standard hinge holes linked with 10mm grooves

  • Outer bore centre

    2240mm

£14.50£17.40 Exc. VatInc. Vat

480 in stock.

Add To Quote

Please note, standard delivery operates on a 1–3 working day schedule. Enjoy free standard delivery when you spend over £800. More information in our delivery information. Please note lengths (anything over 1.5m) cut off for delivery is 12:00 (Monday – Friday)

International shipping available.

Downloads & Resources
Got a question about this product?
Delivery & Returns Specification
Maximum width: 750mmLinked hinge holes: 3 x Standard hinge holes linked with 10mm grooves
Outer bore centre: 2240mm

For further information on our delivery and returns please click this link.

How to adjust the door straightener image

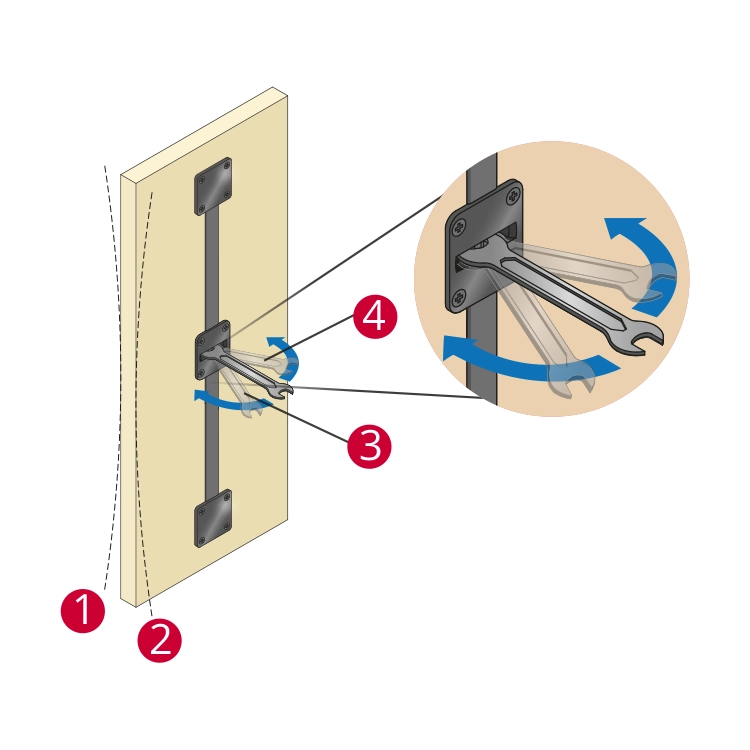

How to adjust the door straightener

If the door in in the 1 position, turn the hexagon nut in the 3 direction in order to straighten the door, vicevesa, turn the hexagon nut in the opposite 4 direction to restore the verticality of the door from position 2.

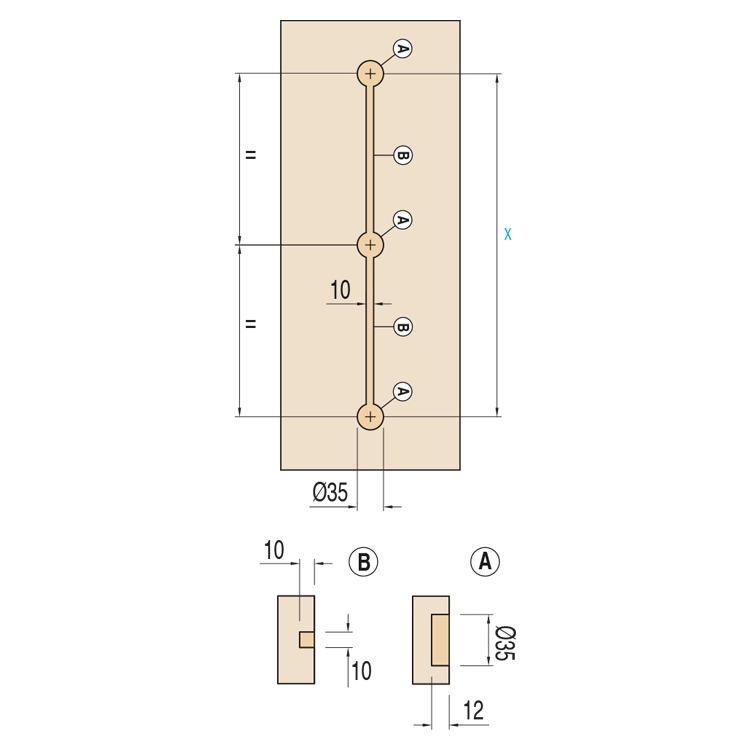

X = 2240mm outer bore centre distance for shorter doors simply cut threaded rods.
