Tommaslide 100 – Straight Sliding Door System – Max Door Weight: 100kg
Our Tommaslide 100 Soft Closing Top Hung Straight Sliding Door Kit remains one of the most popular sellers in our range.
Completely adjustable, smooth rolling and easy to install; it’s the perfect solution for any of your interior or exterior sliding door needs.
Select the Options below to Make Up your Kit:
- Top Hung Straight Sliding System
- Optional Soft Close and Open Mechanism
- Suited to Interior or Exterior Applications
- 10 Year Warranty
- Rollers Tested to 100,000 Cycles
- Track can be Soffit or Face Fixed

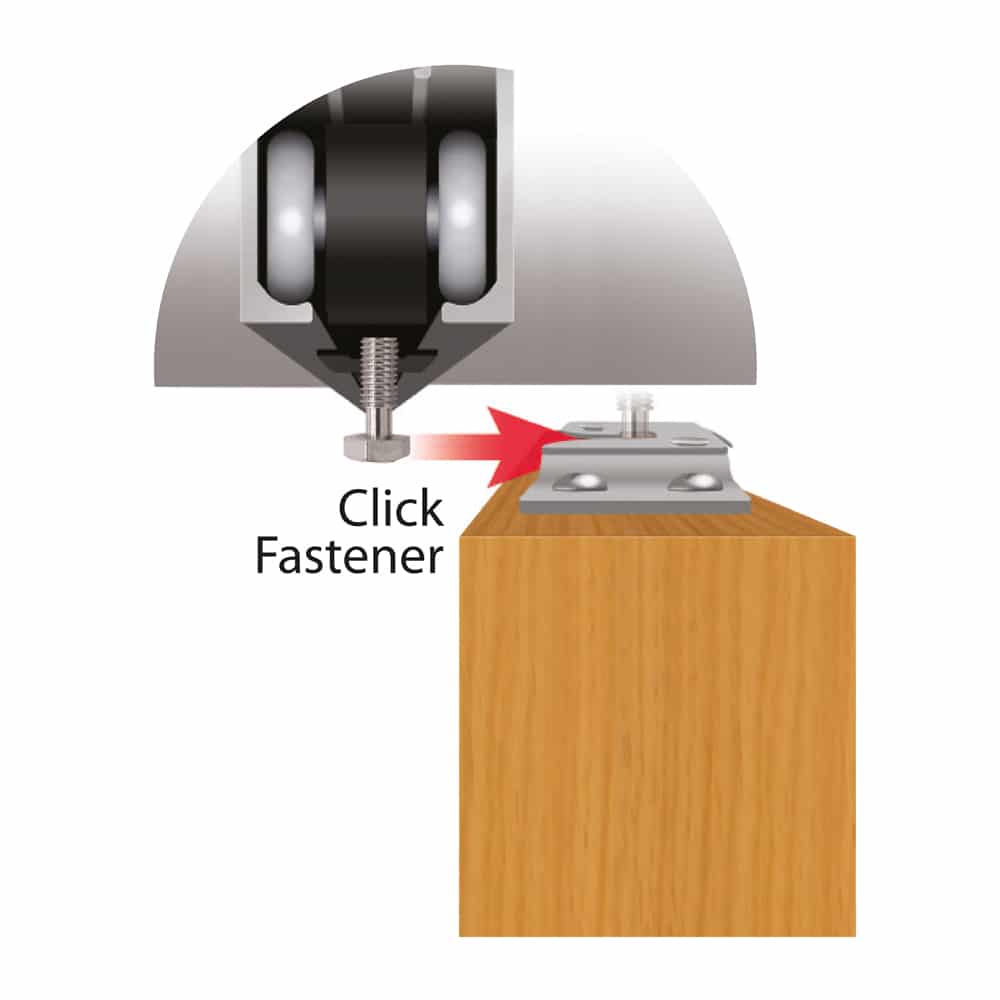

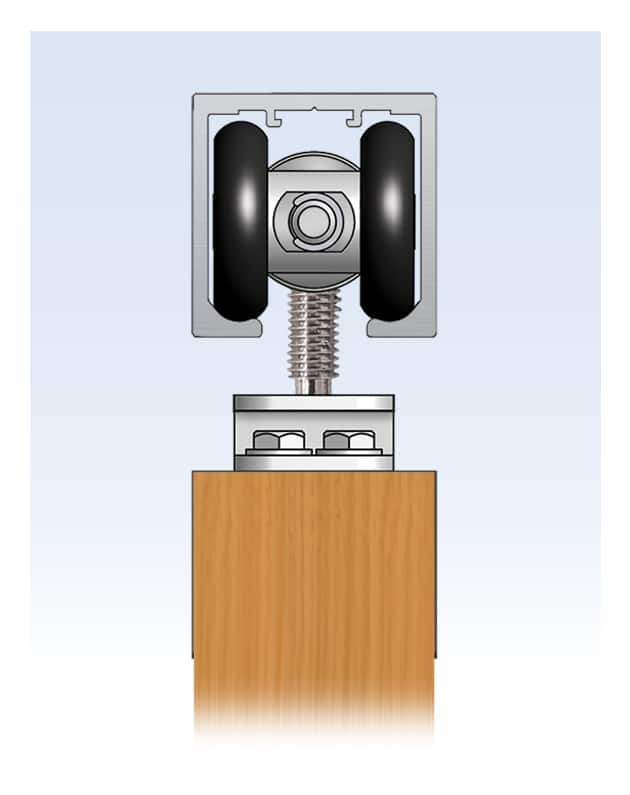

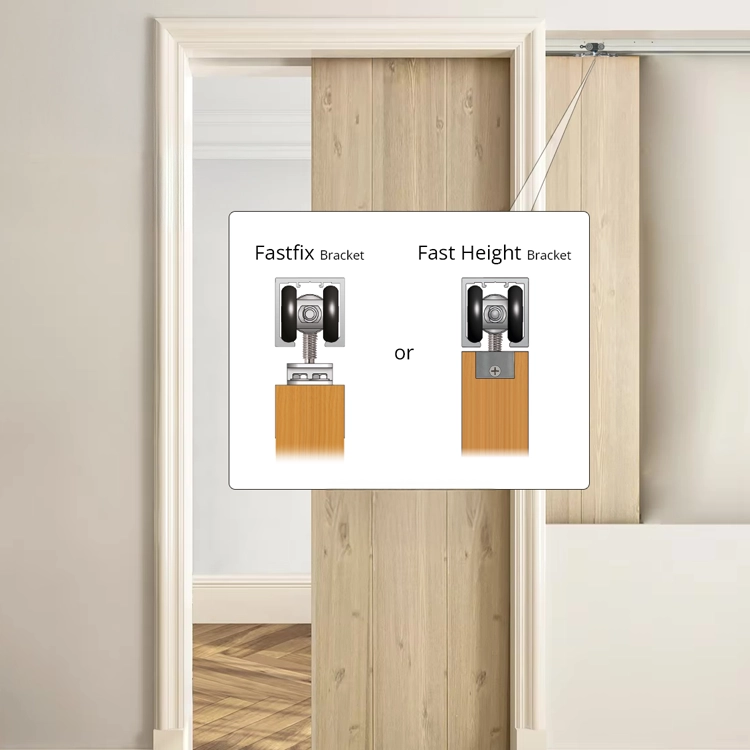

- Recessed (Full Height) or Surface Fixed (Fast Fix) Bracket Available
- Suitable for Timber or Metal Doors
- Track can be joined by butting track together
- Any number of doors can be used on single or multiple lines of track
- Components for extra doors, track and bottom guides can be purchased in related products

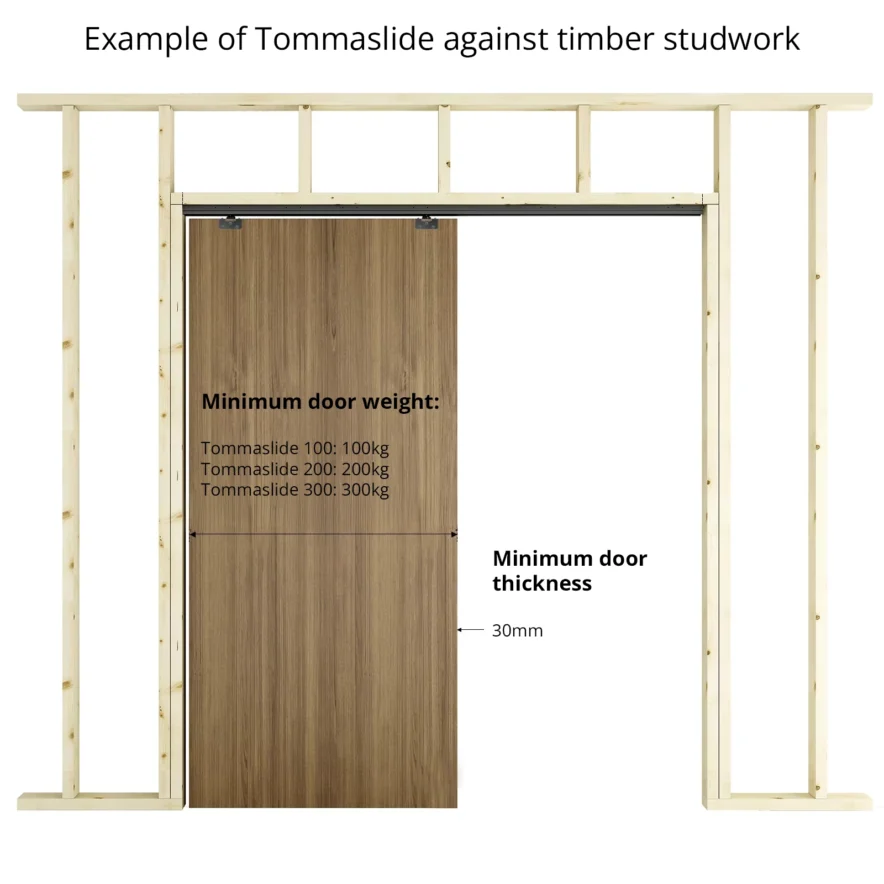

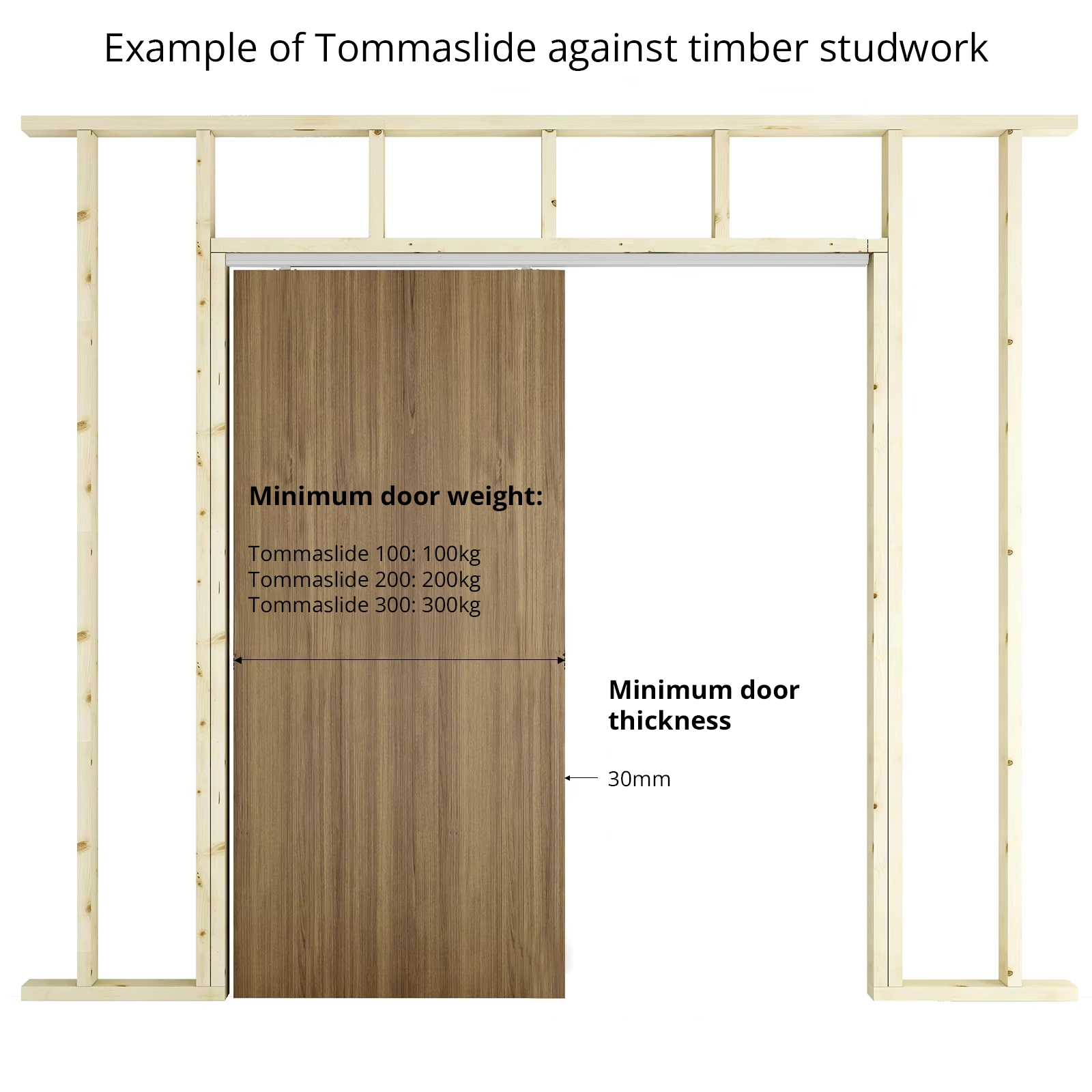

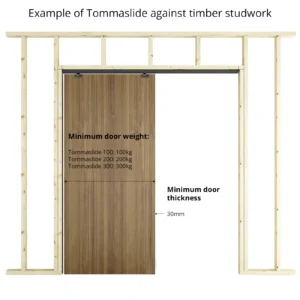

- Max Door Weight: 100kg
- Max Door Weight c/w Soft Close: 80kg
- Min Door Thickness: 30mm
- Up to 13mm Vertical Adjustment
- Min Door Width with soft close and open: 762mm
- Min Door Width with soft close: 370mm
Main
- Aluminium top track (Available in 2m, 3m and 4m Lengths)

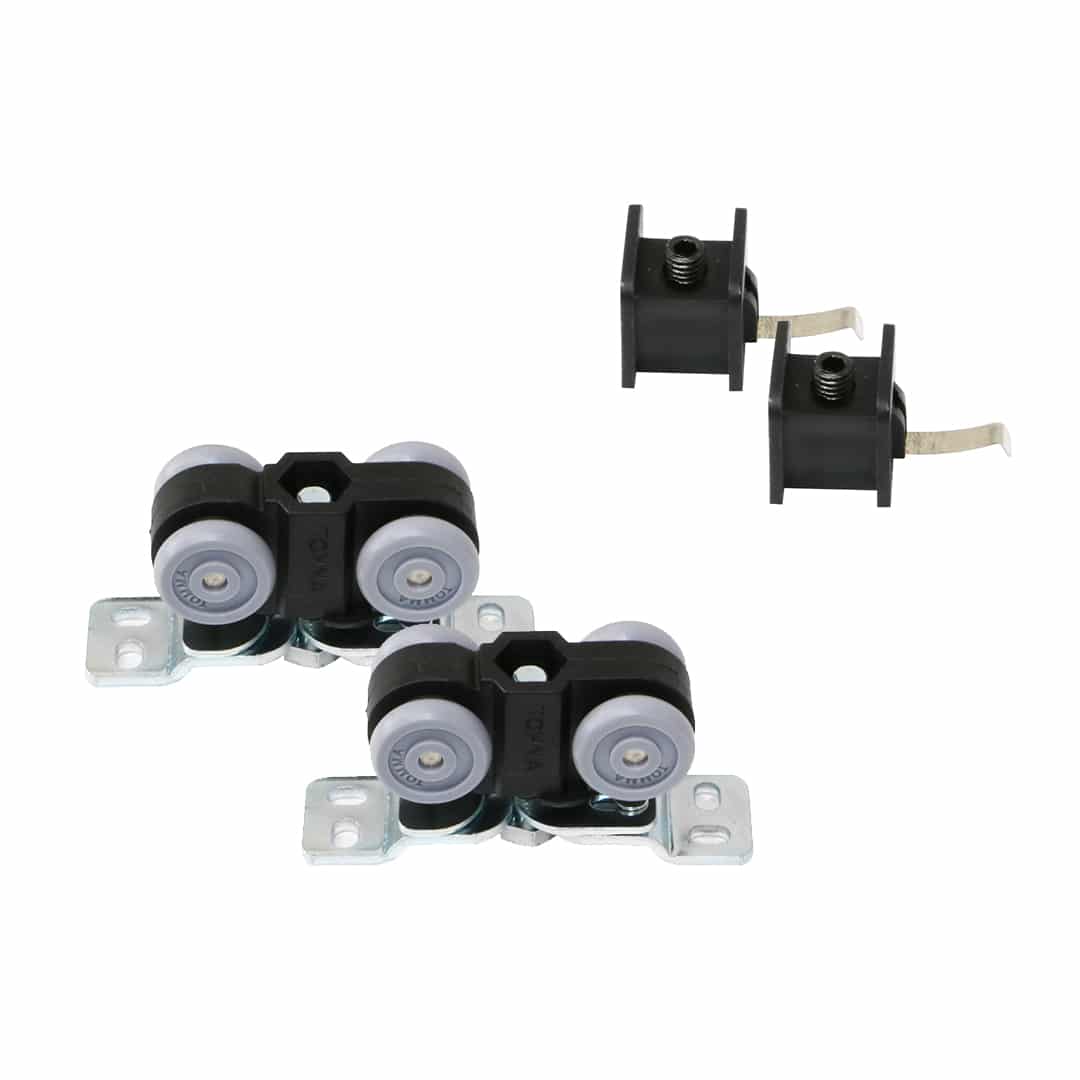

- 2 x Four Wheeled Nylon Rollers
- 2 x Roller Bracket
- 2 x Bolt and Nut for connecting roller to bracket
- 8 x Screws for mounting Bracket to top of door
- 2 x Track Stop Buffer
Soft Close/Open
- Aluminium top track (Available in 2m, 3m and 4m Lengths)

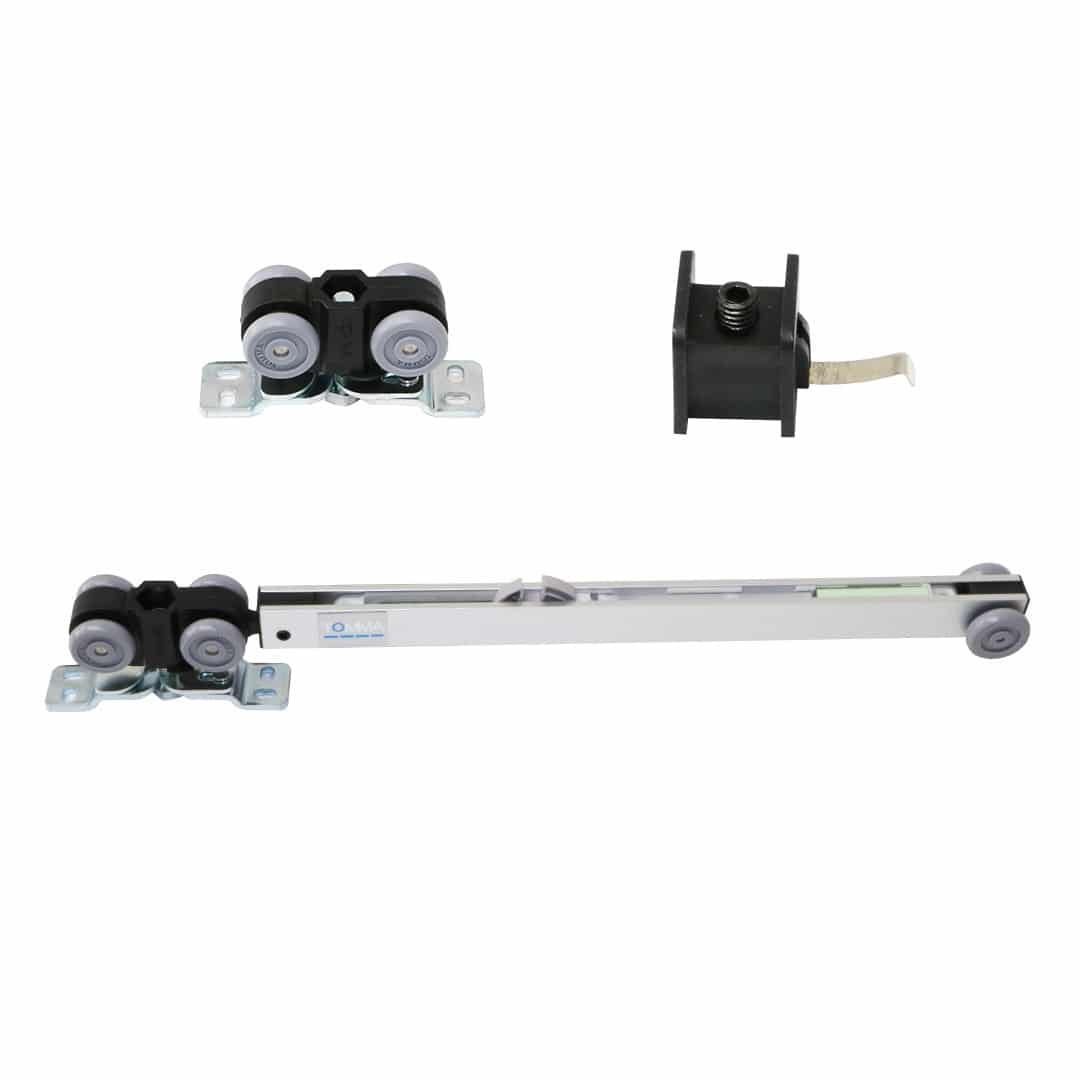

- 2 x Soft Close Six Wheeled Roller Piston
- 2 x Roller Bracket
- 2 x Bolt and Nut for connecting roller to bracket
- 8 x Screws for mounting Bracket to top of door
Kit does not Include Doors
