Tommafold Interior Bifolding Door Track Kit For Max Weight Of 60kg

Tommafold Interior Bifolding Door Track Kit For Max Weight Of 60kg

In stock
SKU: RUN004

From:£198.71 ex VAT

Tommafold is our market-leading brand of interior top hung bifolding door track hardware kit. It is smooth rolling and easy to install, and easy to adjust for fine tuning of different door sizes and weights. A great solution for any interior bifolding door projects saving space and giving years of reliable service.

Select the Options below to Make Up your Kit:

£
Clear

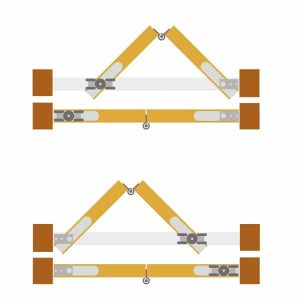

  • Top hung bifold door track and hardware system kit.
  • Suited to interior applications
  • 10 year warranty
  • Smooth rolling polymer tyres tested to 100,000 cycles
  • Hinges tested to 200,000 cycles
  • Track is soffit fixed to underside of jamb
  • Roller connected to door via heavy duty recessed L-bracket
  • Suitable for timber or metal doors, please see step-by-step video below:
  • Track can be joined by butting track together
  • Any number of doors can be fitted to the system

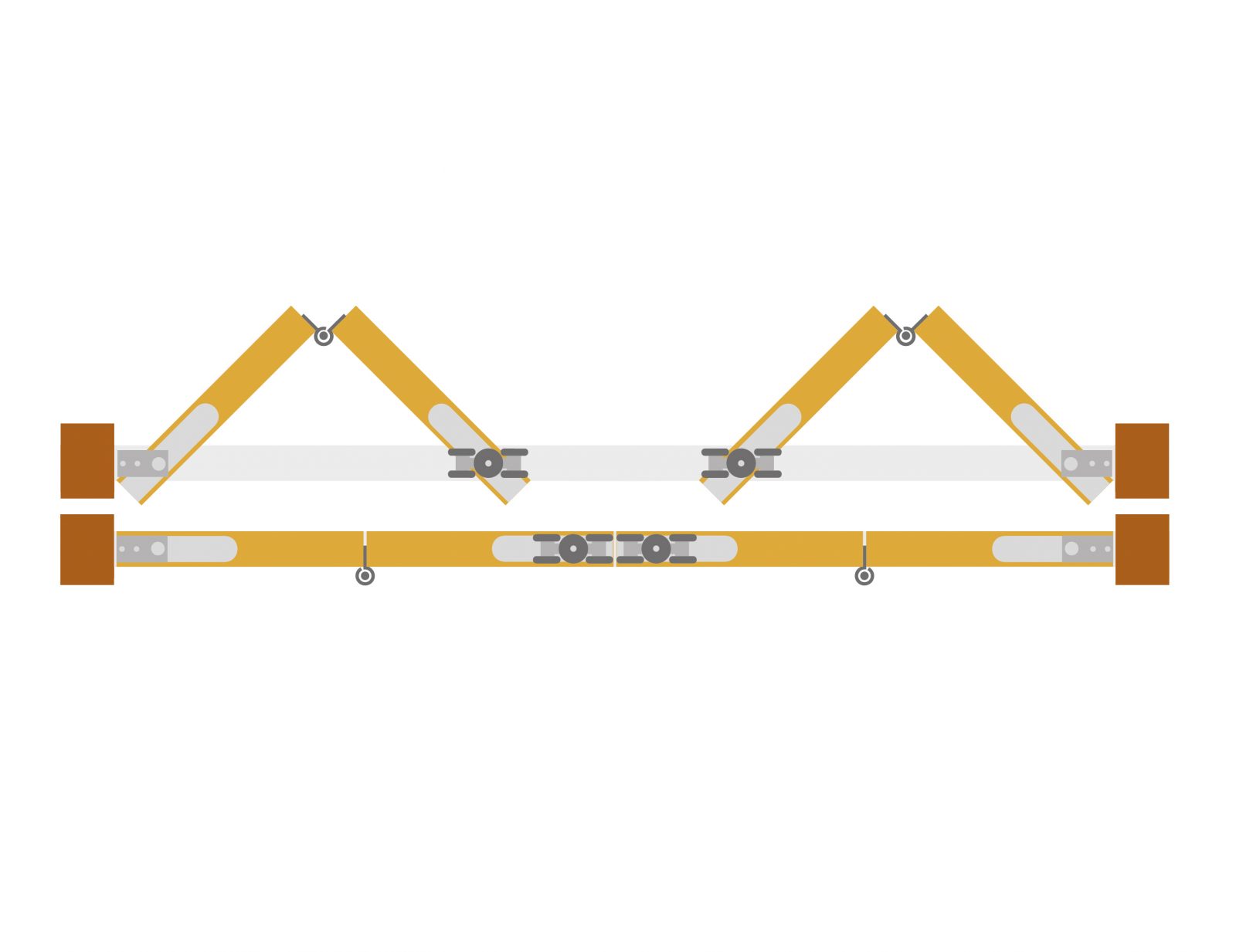

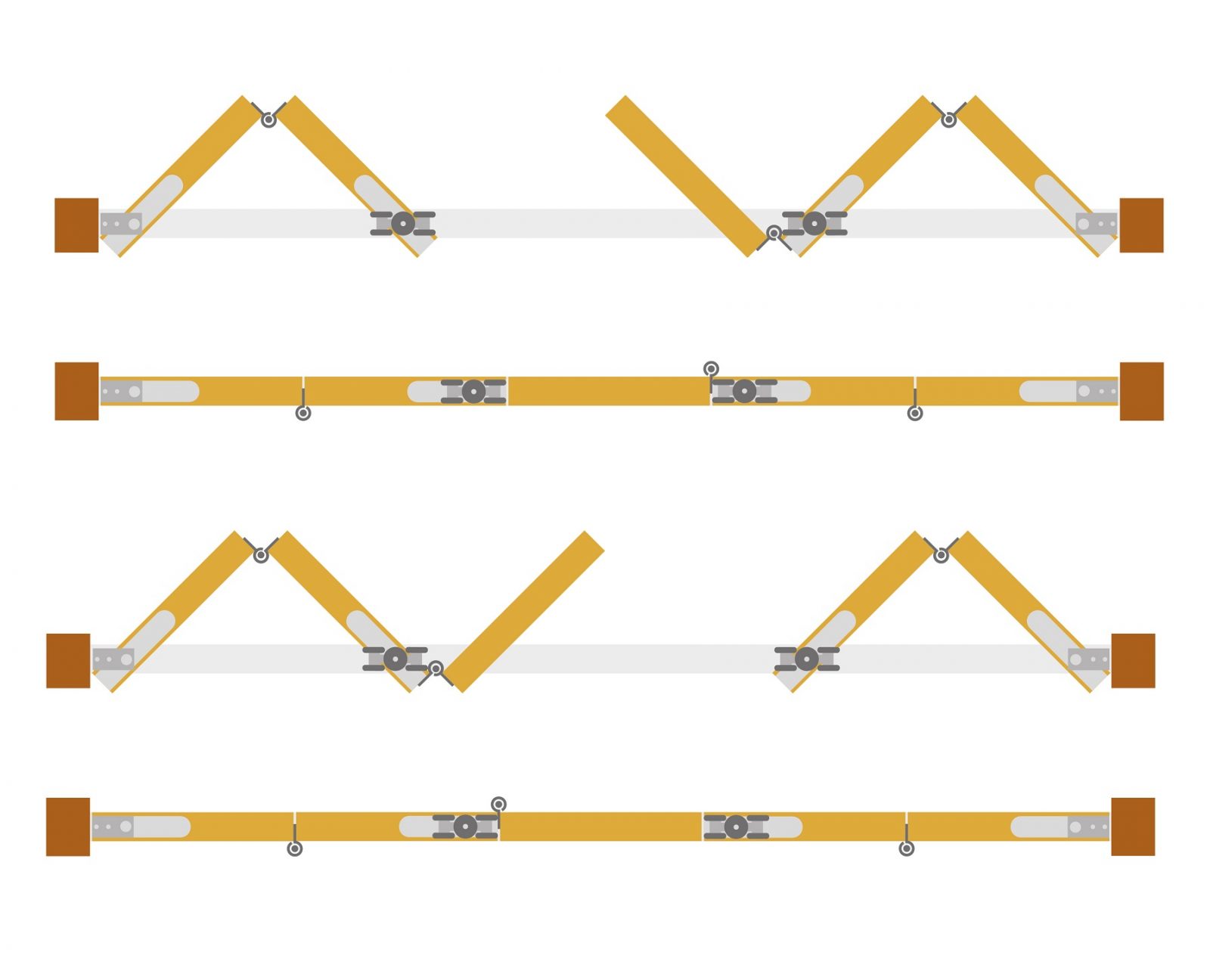

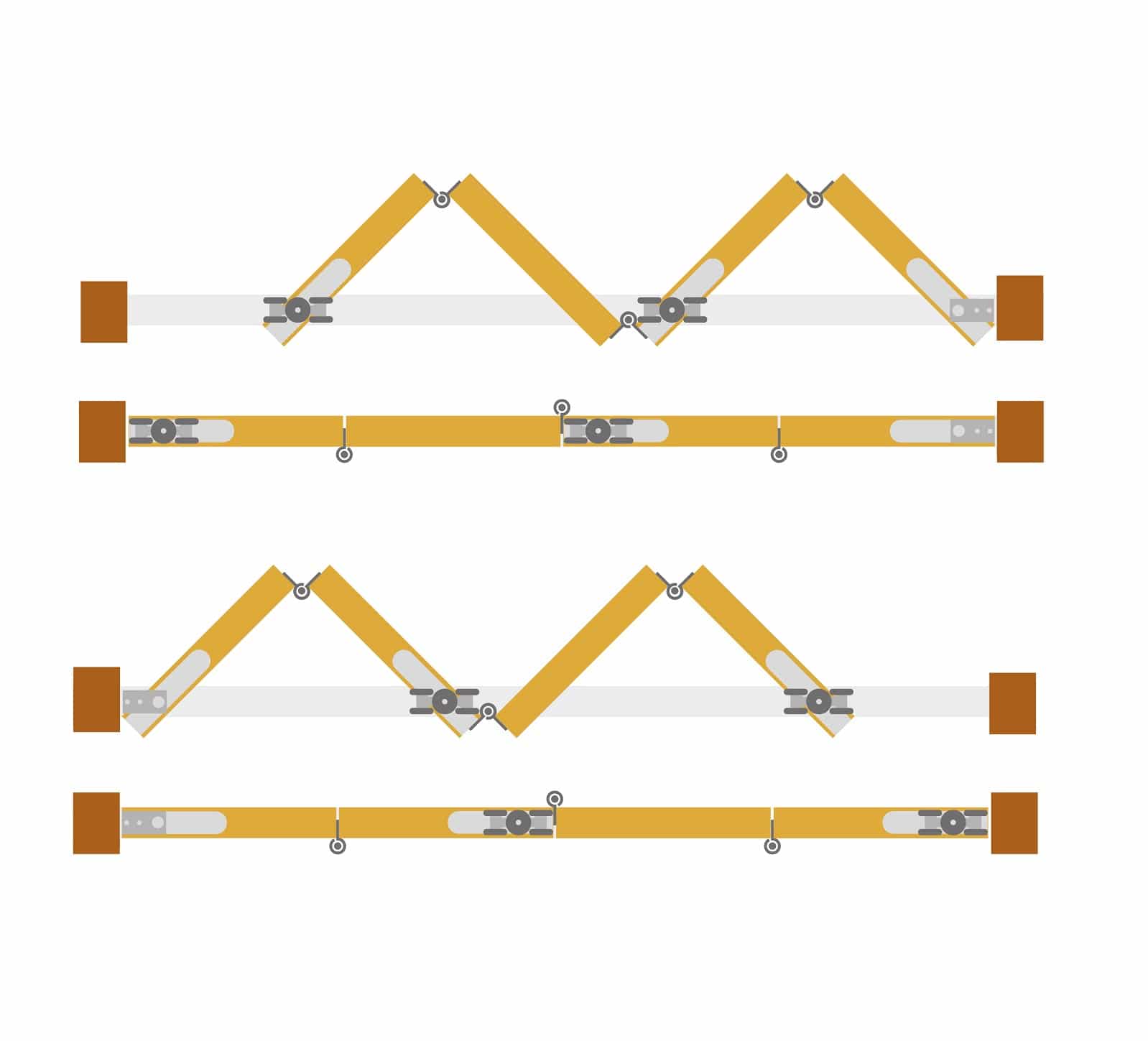

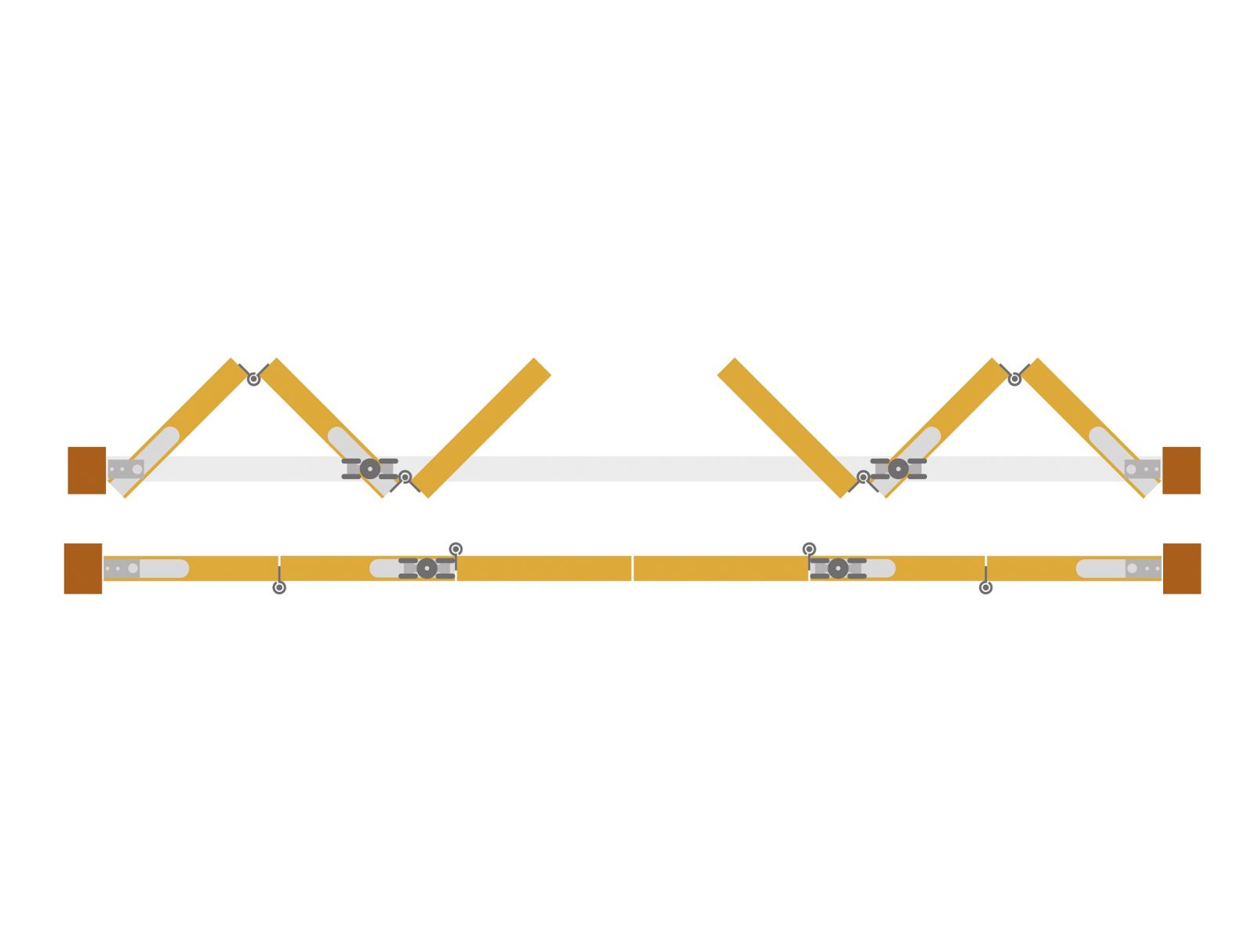

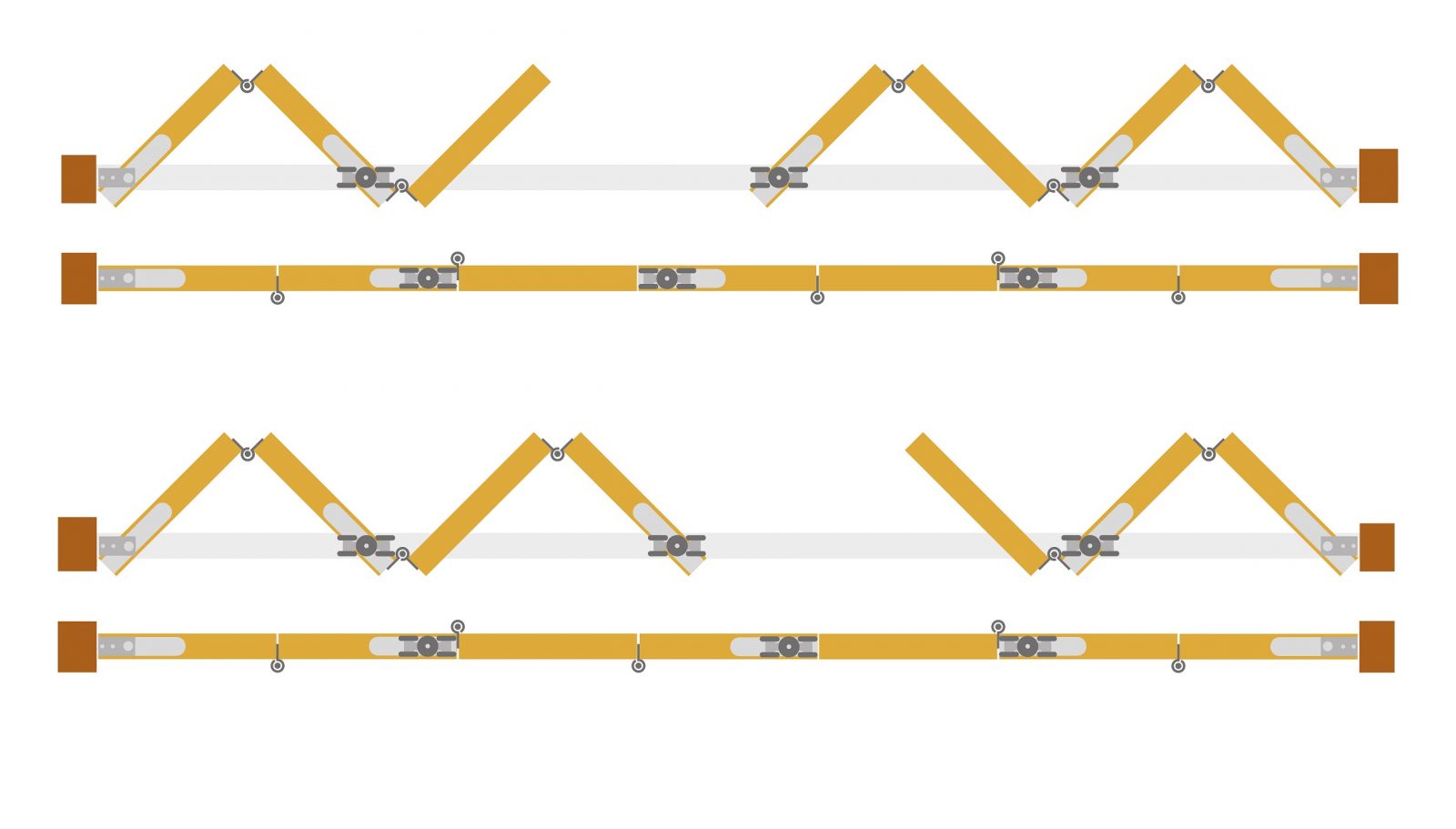

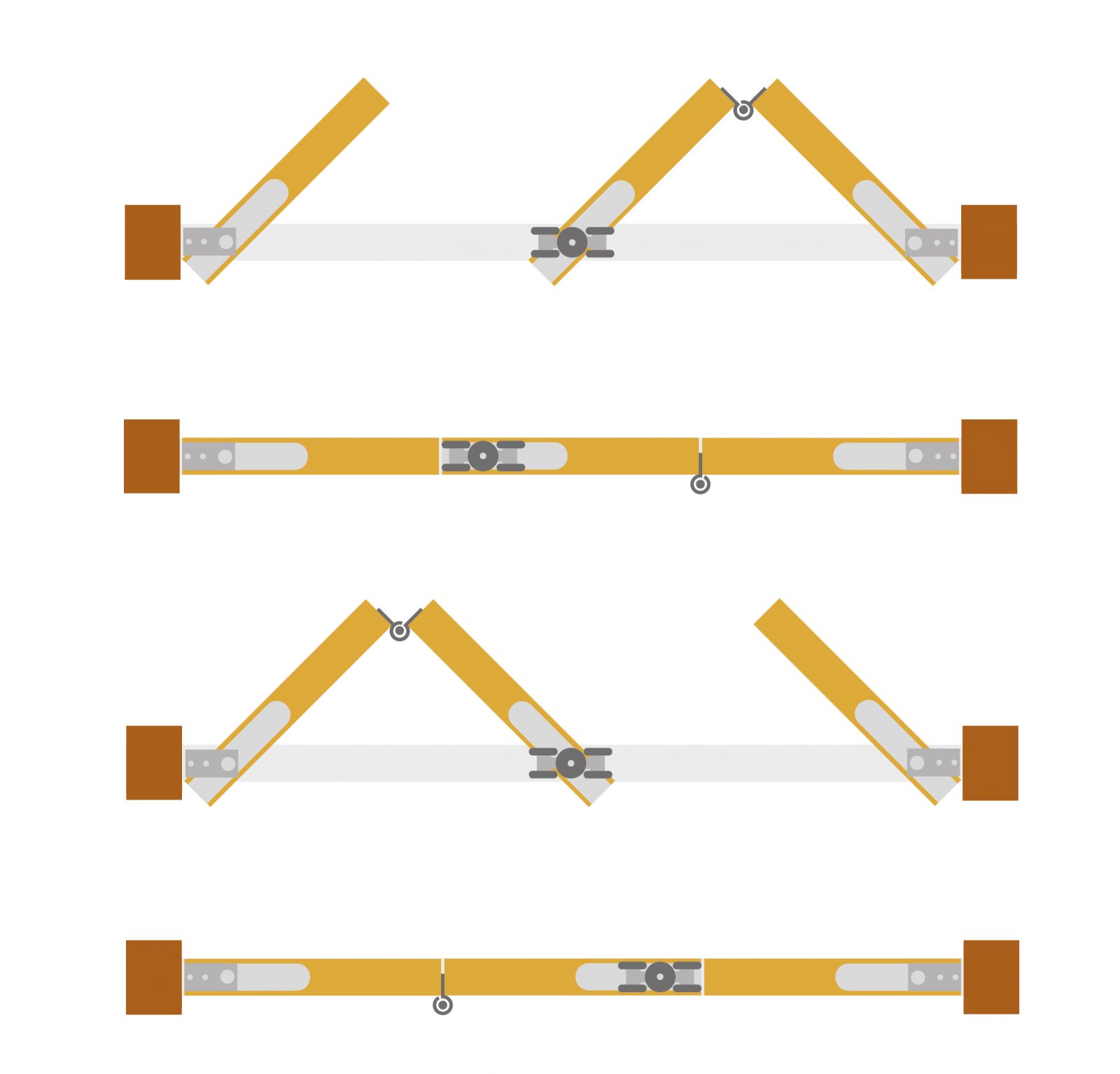

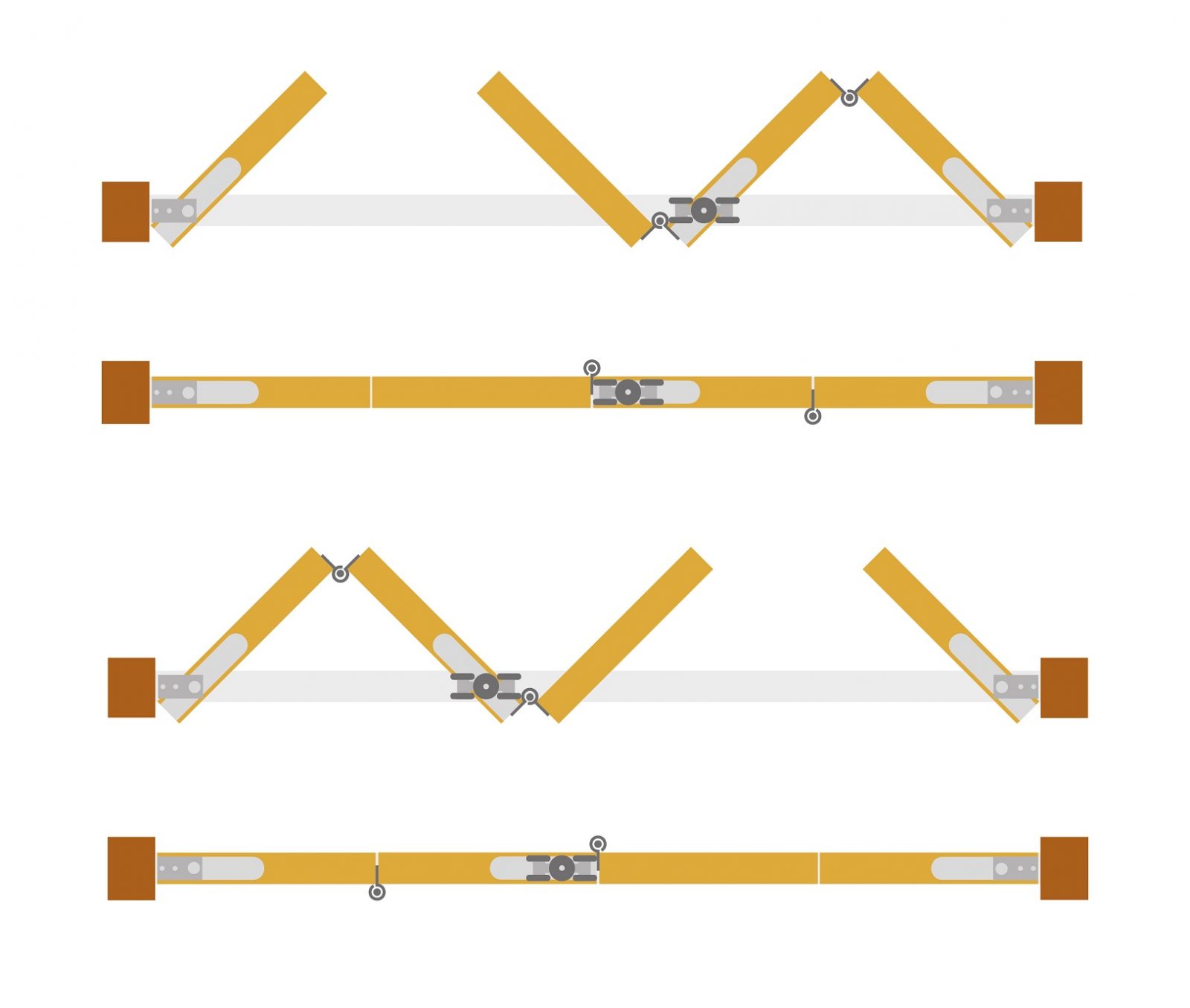

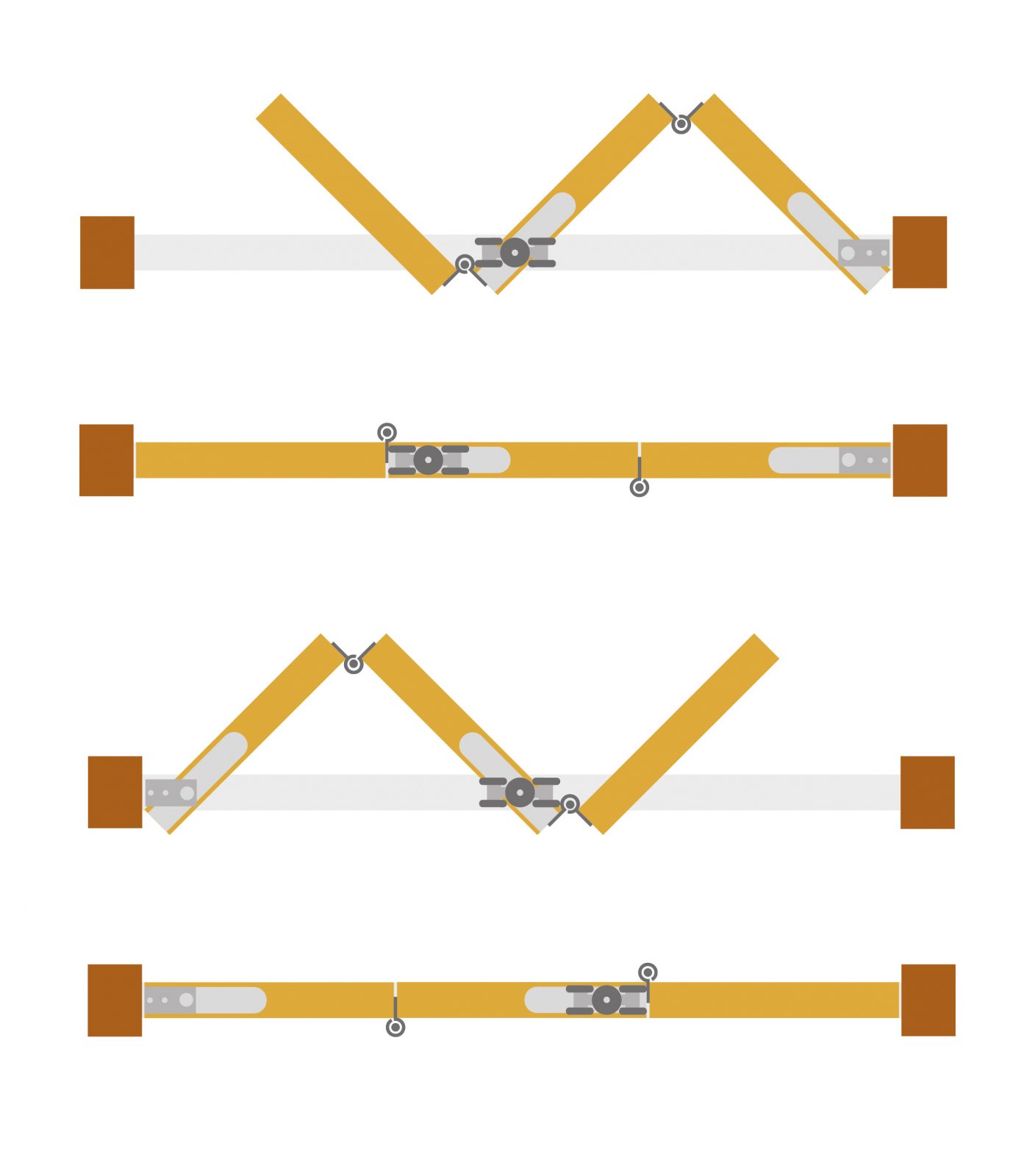

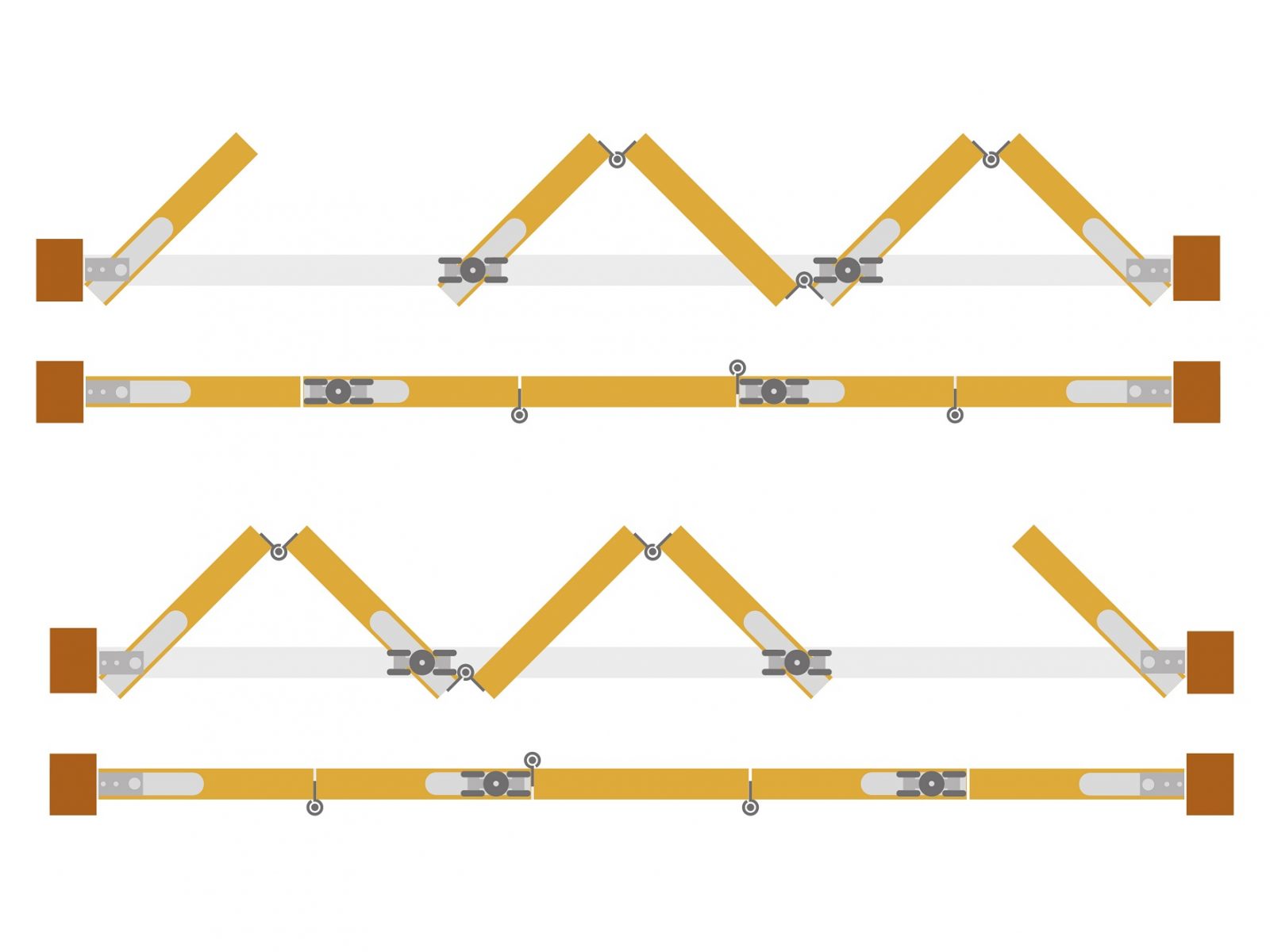

  • Optional bottom track for configurations up to 4 doors folding each way
  • Compact top track (38mm x 39mm)
  • Ergonomic hinge handle design for optimal functionality

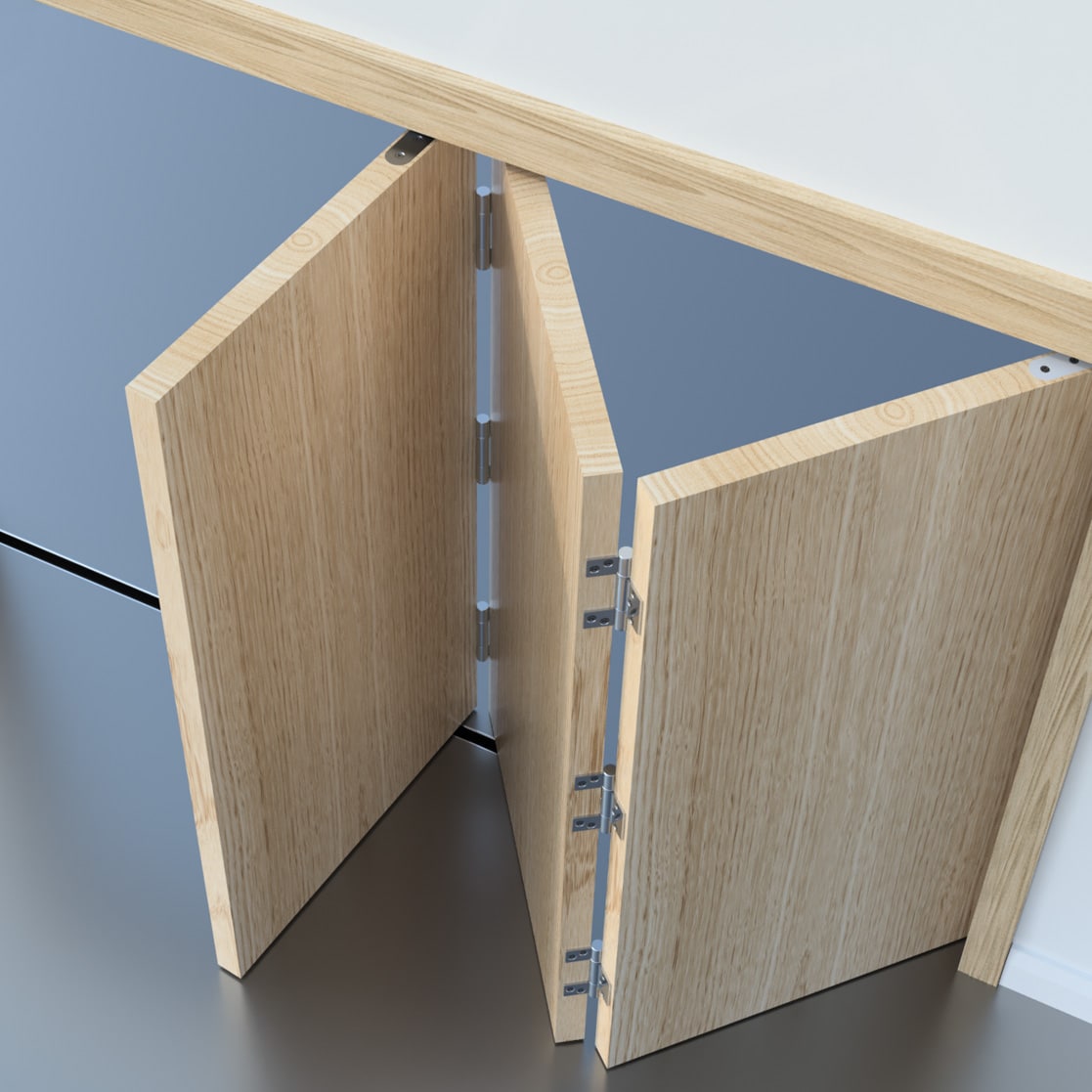

  • Ideal for room dividers in homes, offices and hotels
  • Max door weight: 60kg

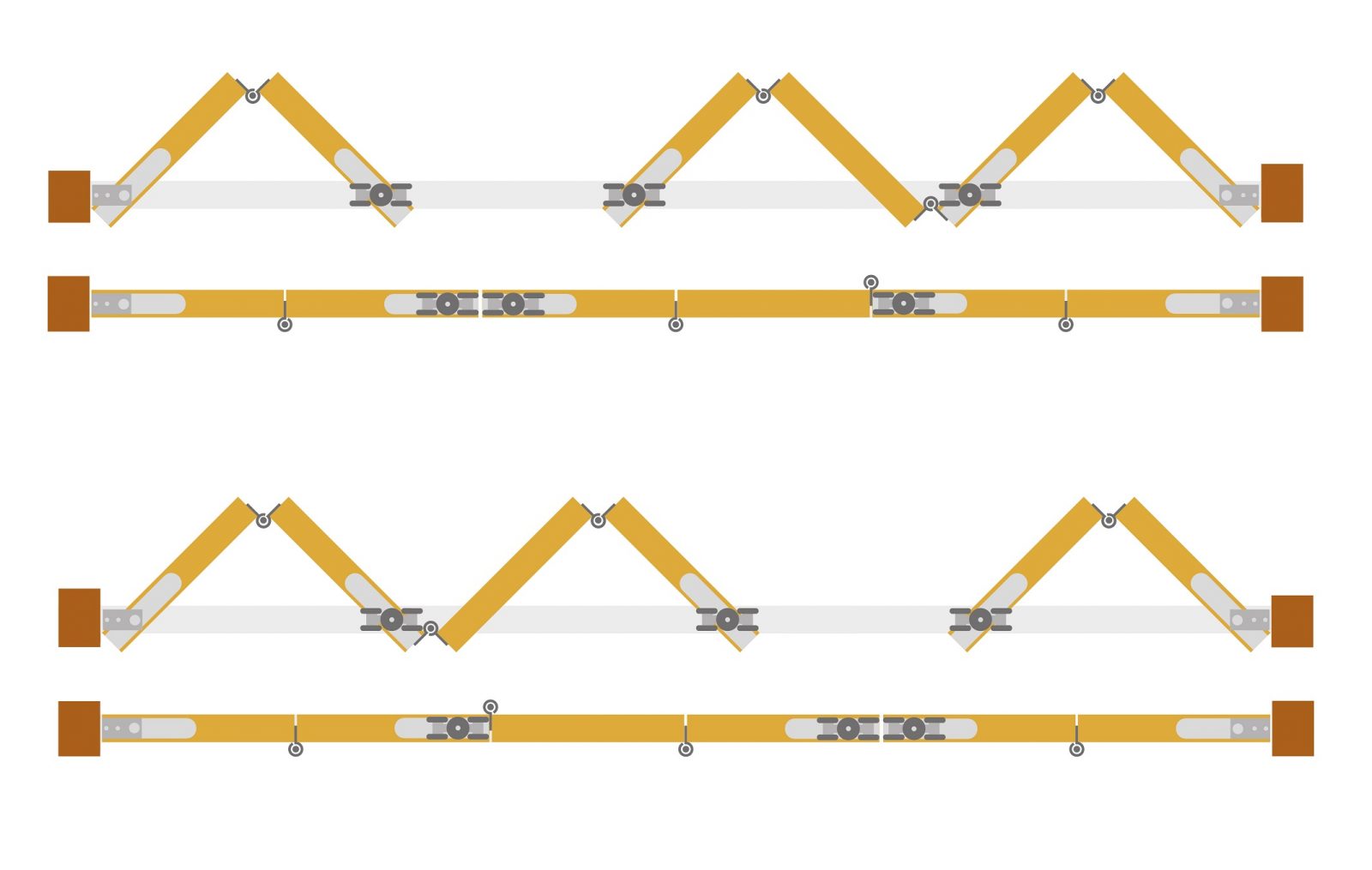

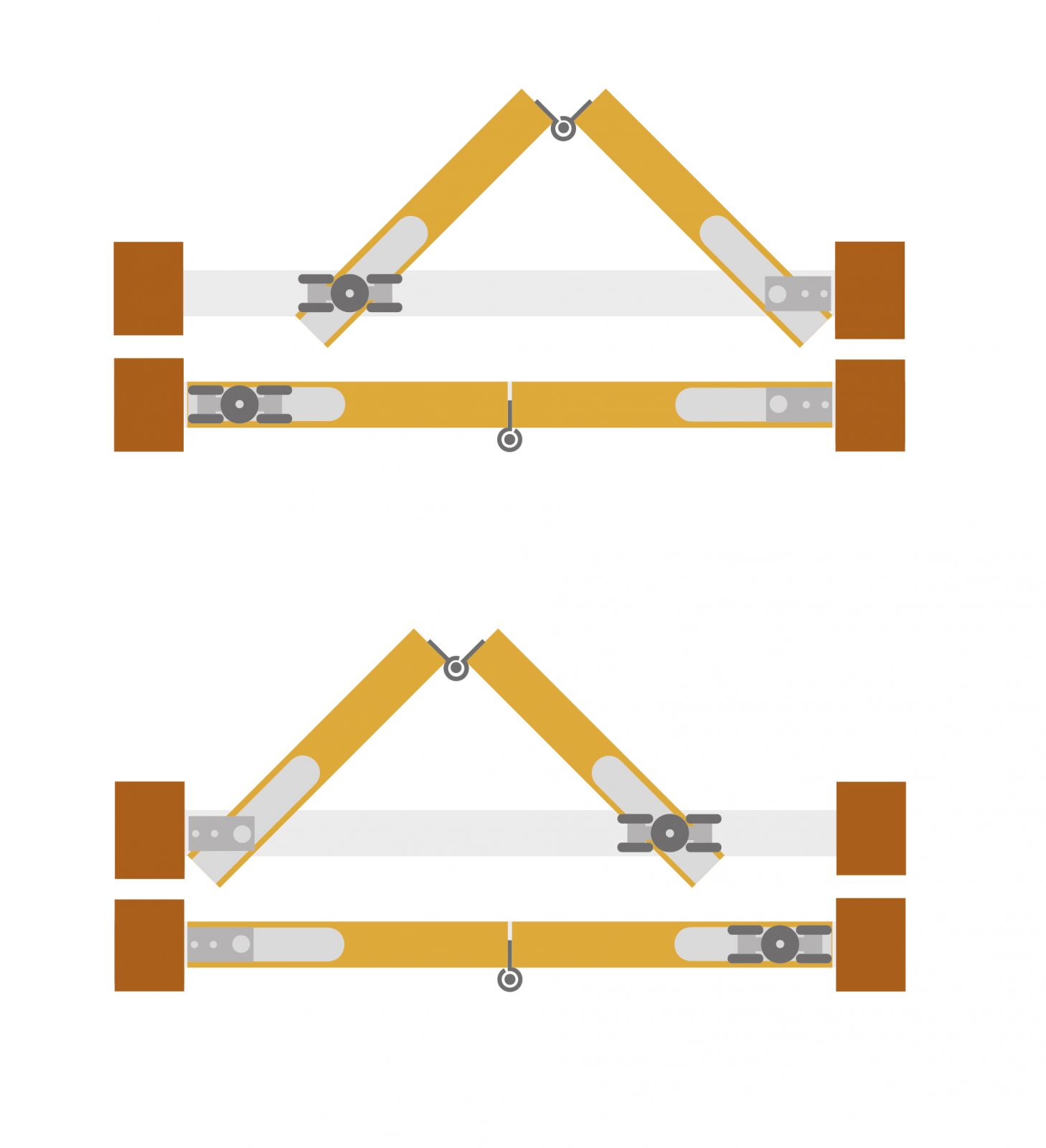

  • Max door weight without bottom track: 40kg
  • Max door height: 3000mm
  • Max door width: 1000mm
  • Min door thickness: 30mm
  • Aluminium top track (Available in 2m, 3m, 4m and 6m lengths)
  • Optional aluminium bottom channel (Available 2m, 3m, 4m and 6m lengths)
  • 1 x L-bracket top and bottom pivot for fixed starter panel
  • 1 x L-bracket four wheeled polymer top roller every 2nd door
  • 1 x Optional L-bracket bottom guide roller every 2nd door
  • 3 x flush hinge and screws per join between doors
  • 1 x hinge handle per join every 2nd door

Kit does not Include Doors
