Evo Double Pocket Door Frame Kit Suited to Standard Size Doors

In stock
SKU: RUN169

From:£536.26 ex VAT

The Evo pocket door frame kit and door system suits both 100 and 125mm walls. It completely adjustable, smooth rolling and can create additional space in any room.

While you are here why not discover our range of modern pocket door handles?

The Evo kit sub frame for plasterboard walls offers great advantage: convenience, simplified maintenance. The Evo is to be finished using architrave around the door frame.

Select your Door Dimensions below to Calculate a pocket door kit price:

Clear
Downloads Icon Downloads
Quote Icon Get a quote

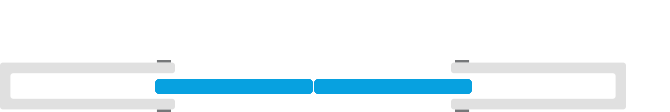

Unique Sliding Technology

pocket door kits

The Evo pocket door kit mechanism frees up precious space usually set aside for conventional hinged doors to open.

Designed to be easily and quickly installed it can replace an existing hinged swinging door as well as installed in new builds.

Features Specification Kit Contents
  • Top hung straight sliding pocket door frame kit
  • Finished with timber jamb kit and architrave
  • Optional soft close and open mechanism
  • Suited to interior applications
  • Track is soffit fixed
  • Suited to standard sized timber, metal or glass panel doors
  • Frameless glass doors can be fitted with the glass conversion kit
  • Rollers tested to 100,000 cycles
  • Easy installation with click together frame
  • For drywall installations
  • Max Door Weight: 120kg
  • Max Door Weight c/w Soft Close: 40kg
  • Door Thickness: 35mm – 44mm
  • Up to 10mm Vertical Adjustment
  • Finished Wall Thickness: 100mm or 125mm
  • 2 x top tracks for the pocket door frame kit
  • 1 x double door 100mm/125mm timber jamb kit c/w brushes
  • 4 x four wheeled nylon rollers c/w fixing brackets
  • 2 x support framework (for each door)
  • 24 x cross support studs
  • 8 x stud foot support brackets
  • 2 Door Guide Fin and Screws
  • 144 x Fixing Screws
  • 2 x Rubber Buffer
Kit does not include doors

Evo Fitting Instructions
