Tommaslide 200 Sliding Door Mechanism

Tommaslide 200 Sliding Door Mechanism

Tommaslide 200 Sliding Door Mechanism

Clear
In stock
SKU: RUN045

From:£151.28 ex VAT

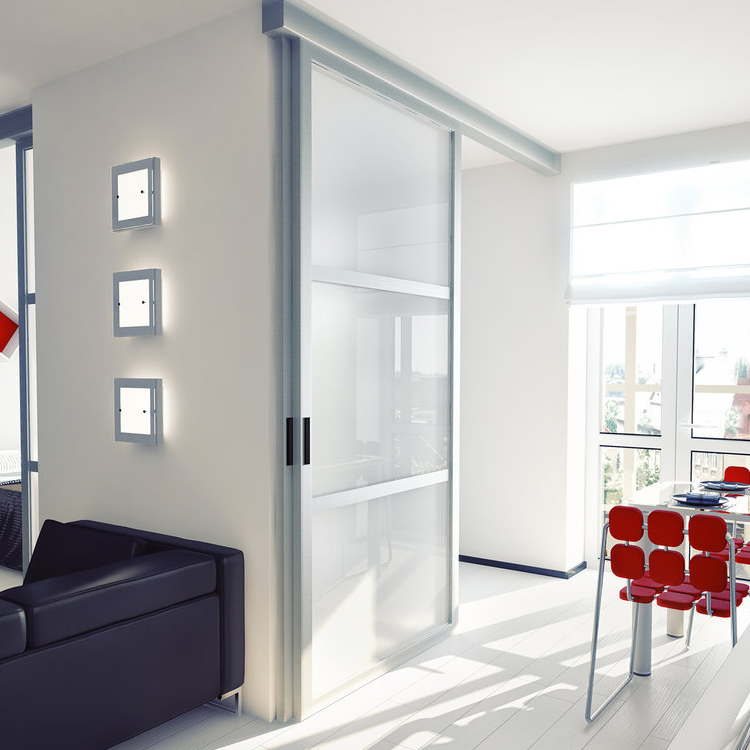

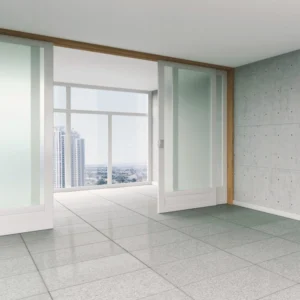

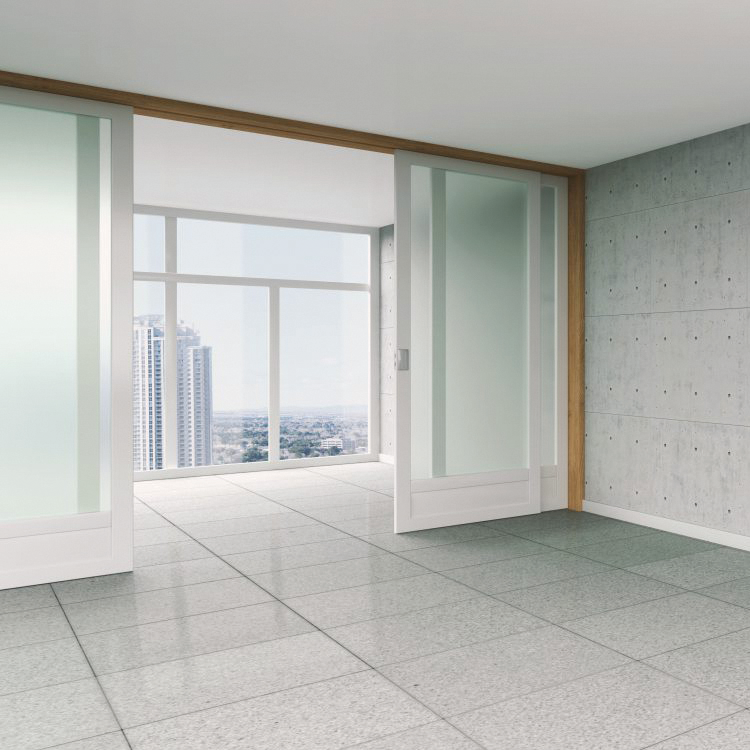

The TommaSlide 200 sliding door soft close mechanism comes as a straight sliding door hardware kit that is durable and popular with trades people. It is completely adjustable, smooth rolling and easy to install. A good solution for almost any interior sliding door or pocket door mechanism hanging needs for doors upto 200 kgs.

Select the Options above to Make Up your Kit:

  • Top Hung Straight Sliding Door Soft Close System
  • Suited to Interior or Exterior Applications
  • 10 Year Warranty
  • Rollers Tested to 100,000 Cycles
  • Track can be Soffit or Face Fixed

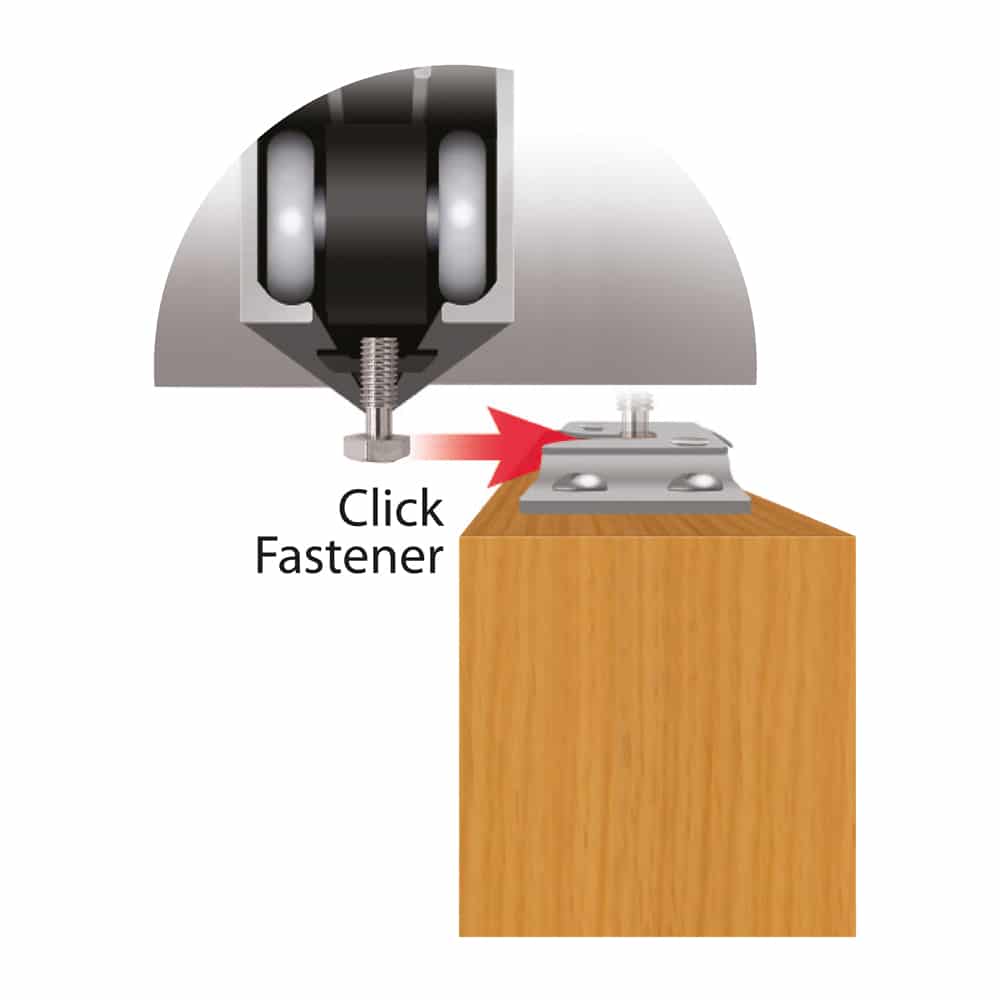

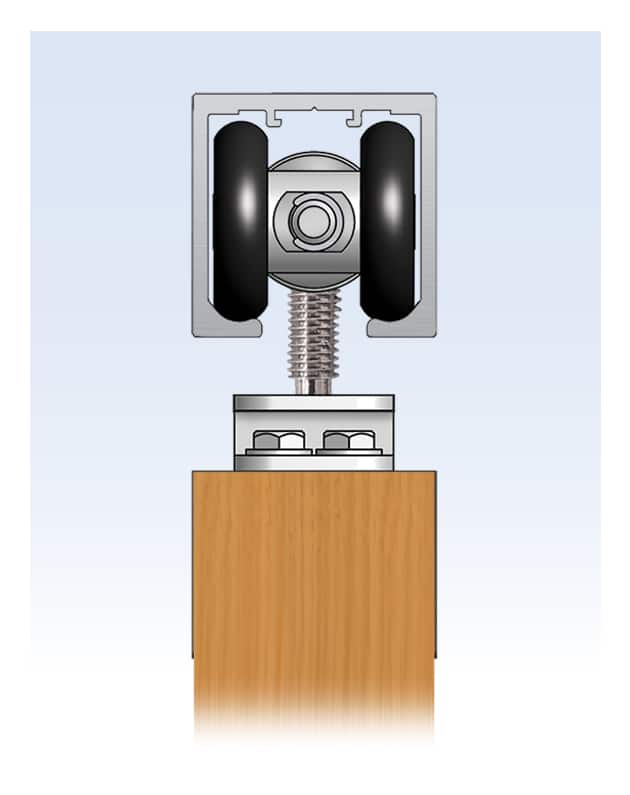

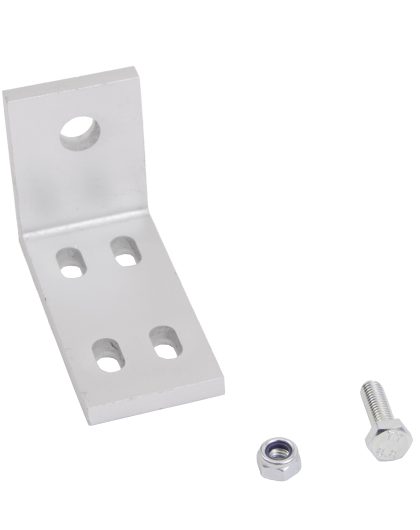

  • Recessed (Full Height) or Surface Fixed (Fast Fix) Bracket Available
  • Suitable for Timber or Metal Doors
  • Track can be joined by butting track together
  • Any number of doors can be used on single or multiple lines of track

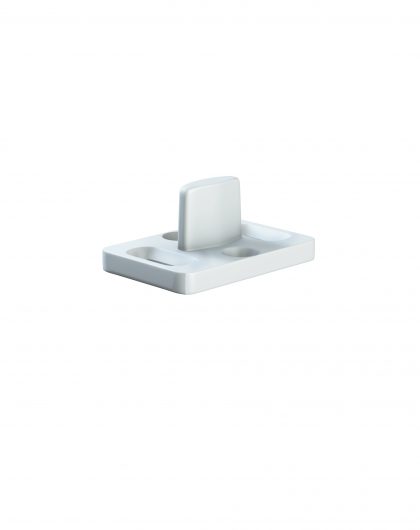

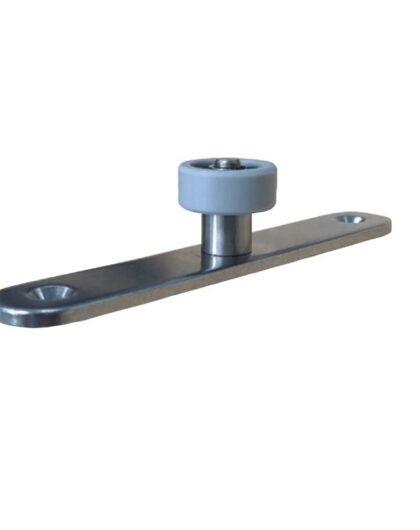

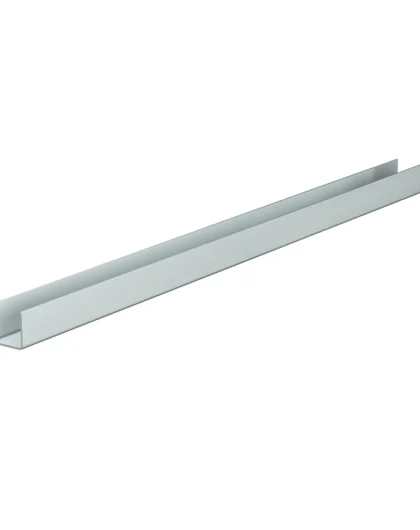

  • Components for extra doors, tracks, pocket door mechanisms, and bottom guides can be purchased in related products
  • Max Door Weight: 200kg
  • Max Door Weight c/w Soft Close: 160kg
  • Min Door Thickness: 30mm
  • Up to 13mm Vertical Adjustment
  • Min Door Width with soft close: 450mm
Main
  • Aluminium top track (Available in 2m, 3m and 4m Lengths)
  • 2 x Four Wheeled Nylon Rollers
  • 2 x Roller Bracket
  • 2 x Bolt and Nut for connecting roller to bracket
  • 8 x Screws for mounting Bracket to top of door
  • 2 x Track Stop Buffer
Soft Close/Open
  • Aluminium top track (Available in 2m, 3m and 4m Lengths)

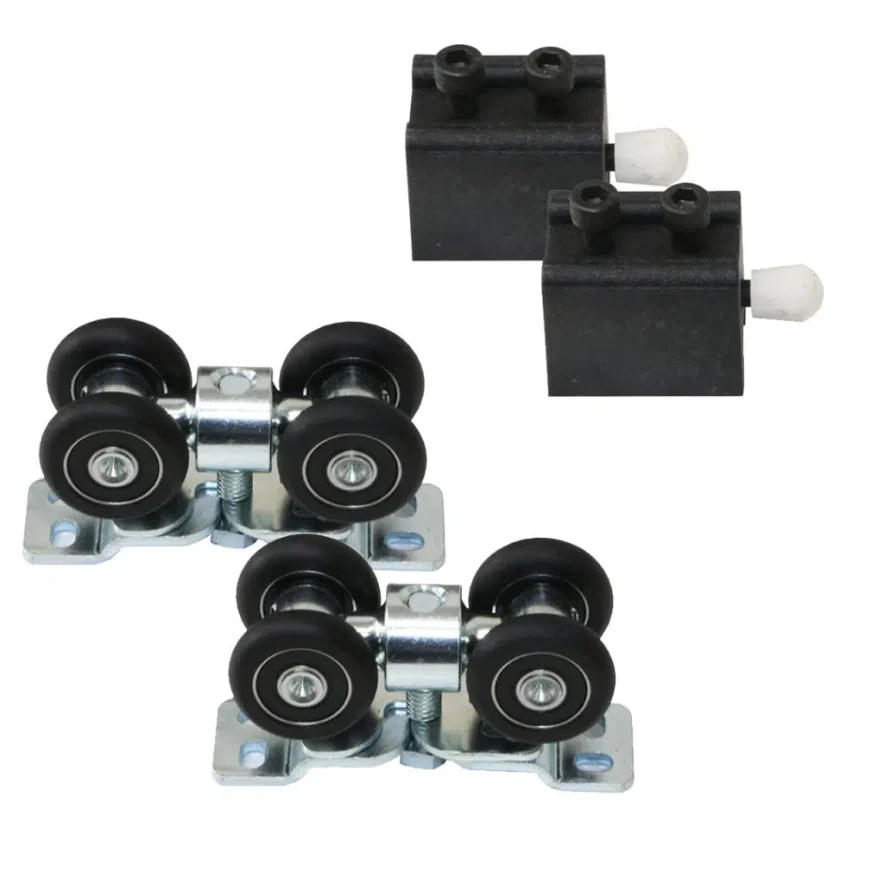

  • 2 x Soft Close Six Wheeled Roller Piston
  • 2 x Roller Bracket
  • 2 x Bolt and Nut for connecting roller to bracket
  • 8 x Screws for mounting Bracket to top of door

Kit does not Include Doors



For more information, check out Issue 2 of our
On-Furniture and Interior Sliding System catalogue.
