Invisible Sliding Door Gear Kit for Interior Doors

Invisible Sliding Door Gear Kit for Interior Doors

In stock
SKU: RUN087

From:£249.75 ex VAT

Ideal for invisible doors, these straight sliding door kits with soft closer built in, are a great option for frameless internal doors or concealed doors into wall applications that save space and seem to float on air.

Stylish, minimalist, sustainable, and on-trend, this smooth rolling invisible doors gear kit comes with everything you need and is easy to install. You can also adjust the kit quickly and easily to accommodate any application. Have a look at our video guide to fitting the invisible doors below.

Select the Options below to Make Up your Kit:

Clear
  • Sliding Mechanism is Invisible as fitted to back of door
  • Top Hung and Bottom Rolling Straight Sliding System (weight evenly distributed between top and bottom rollers)

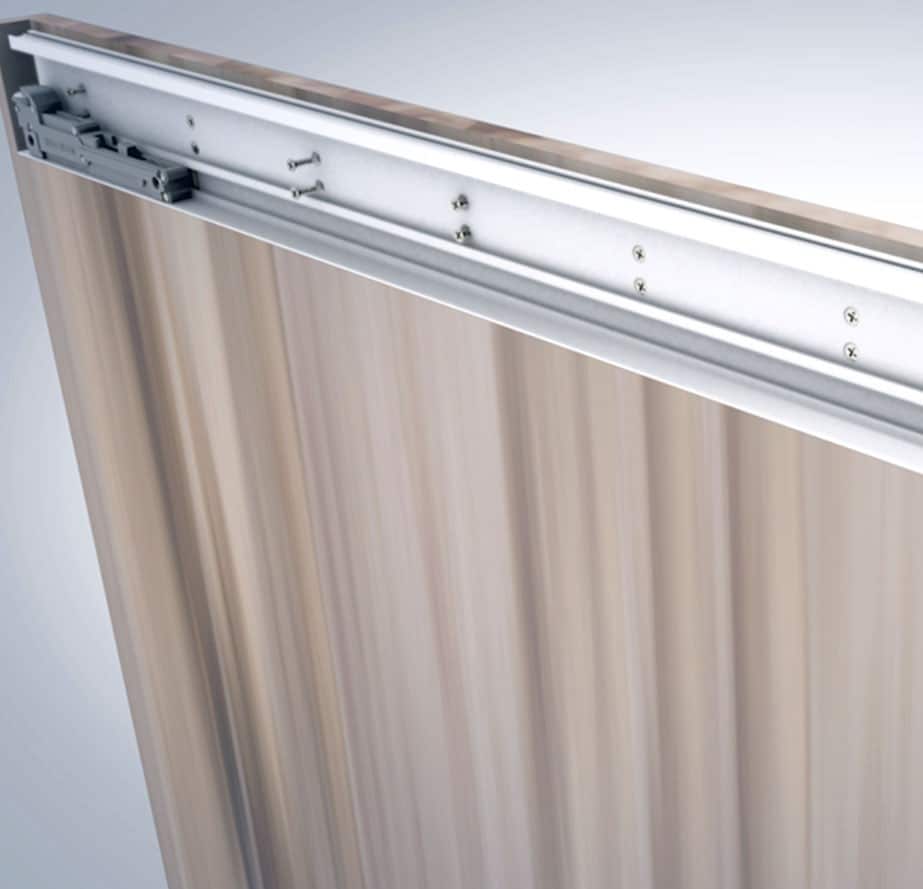

  • Track is fixed to Back of Door and Roller is fixed to wall
  • Suited to Timber Concealed Doors

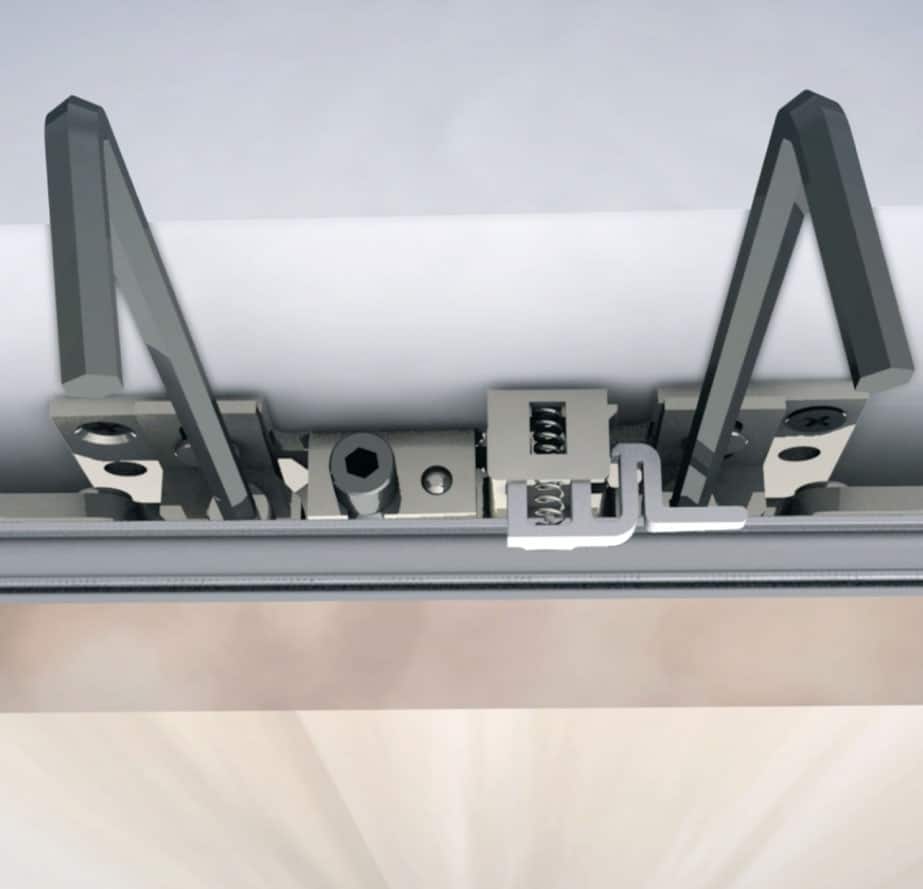

  • Integrated Soft Close and Open Mechanism
  • Fully Adjustable mechanism for optimum functionality
  • Best Suited to Hard Flooring
  • Max Door Weight: 80kg
  • Min Door Thickness: 40mm
  • Max Door Width: 1150mm
  • Max Door Opening Width: 900mm

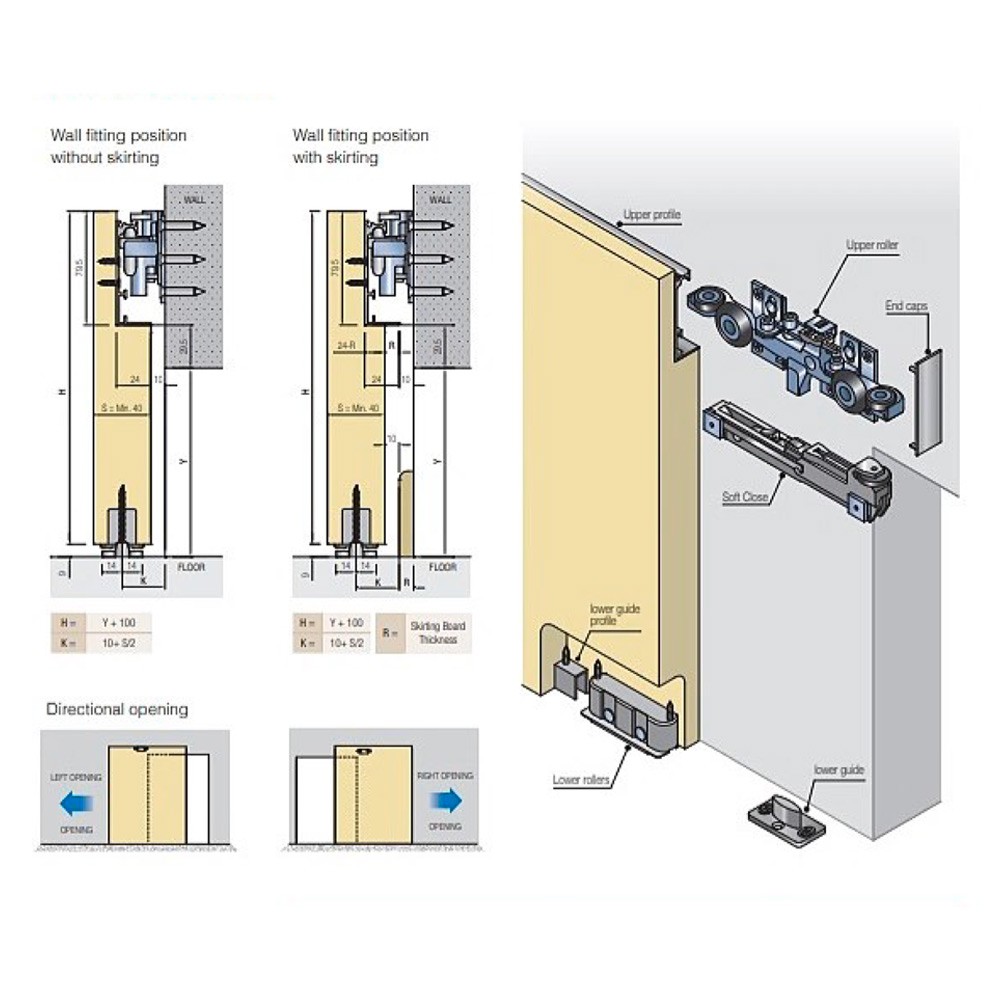

  • Door Width = Door Opening Width + 253mm
  • Door Height = Door Opening Height + 100mm

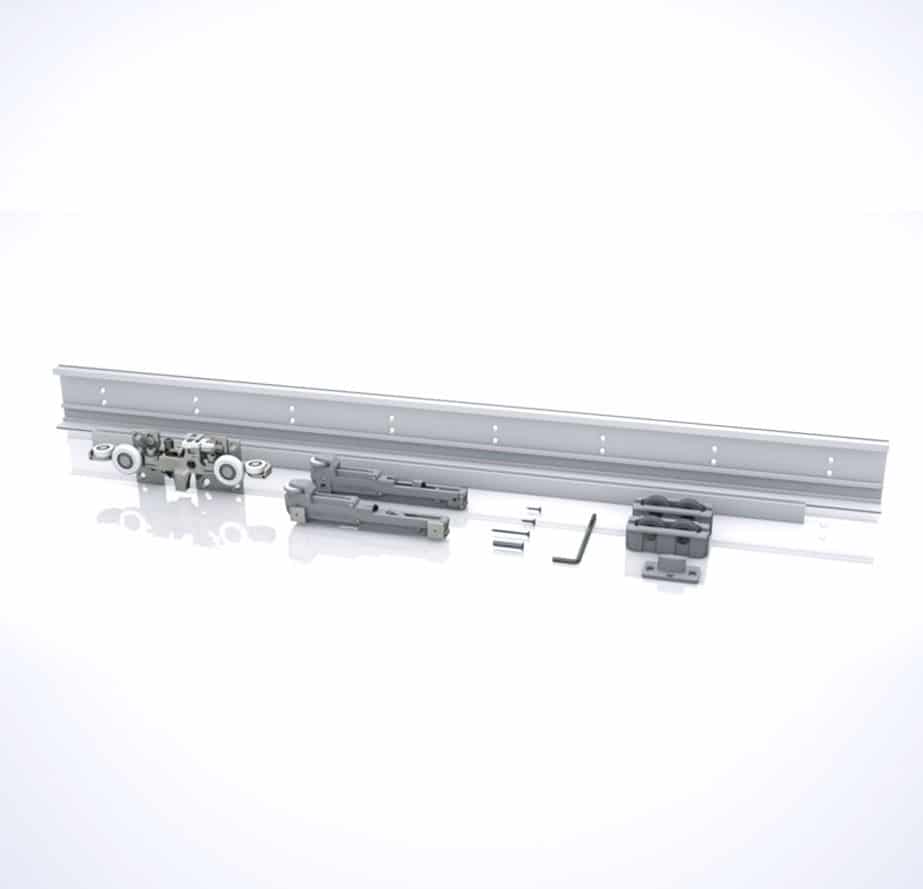

  • 1 x Aluminium top track profile (Available in 1150mm Lengths)
  • 1 x Four Wheel Nylon Wall Roller
  • 2 x Soft/Close Mechanism
  • 1 x Nylon Floor Guide
  • 1 x Aluminium Bottom Guide Profile
  • 2 x Two Wheeled Bottom Rolling Castor
  • 2 x Track End Caps
  • 36 x Fixing Screws
  • 8 x Wall Plugs
Please note that this invisible doors kit does not include doors.

How to Install Video
